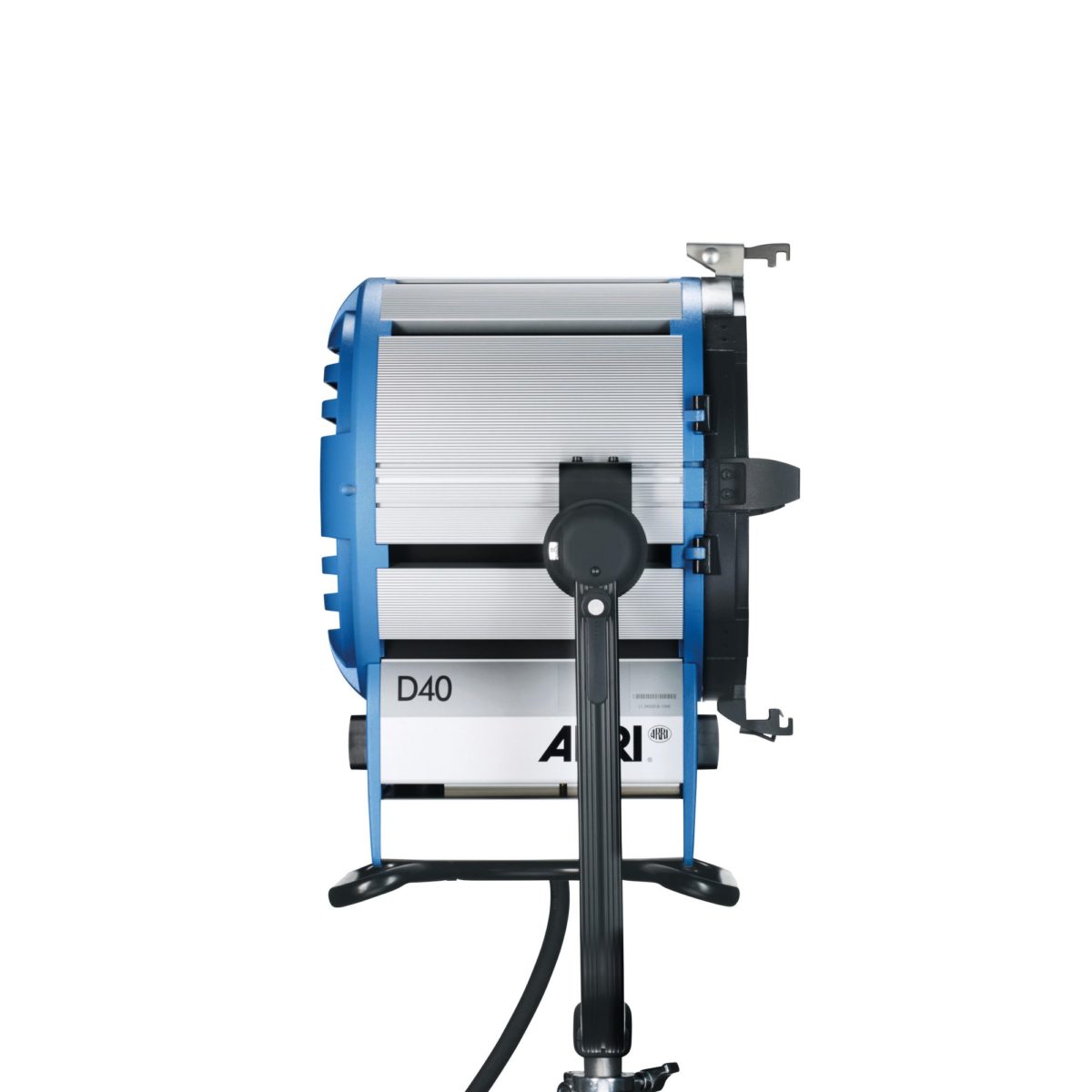

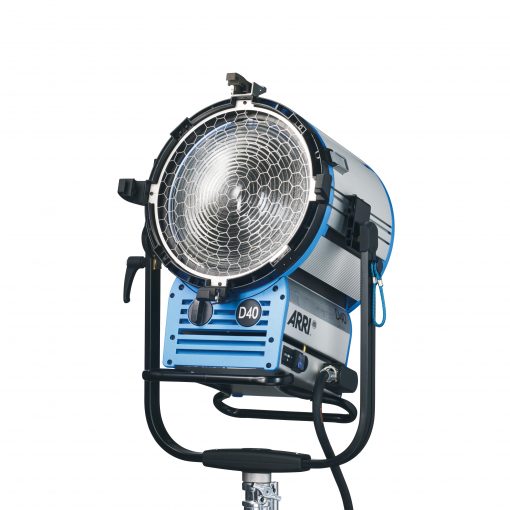

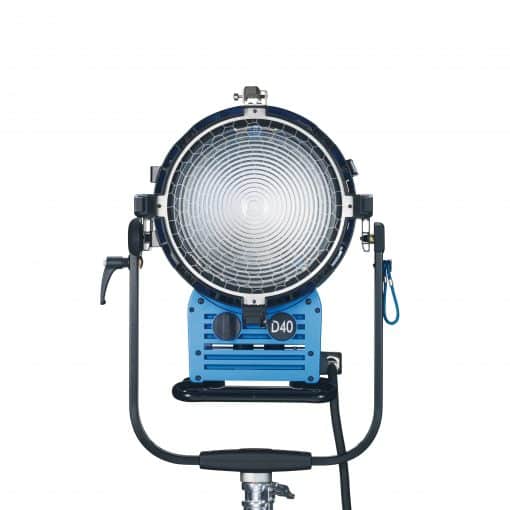

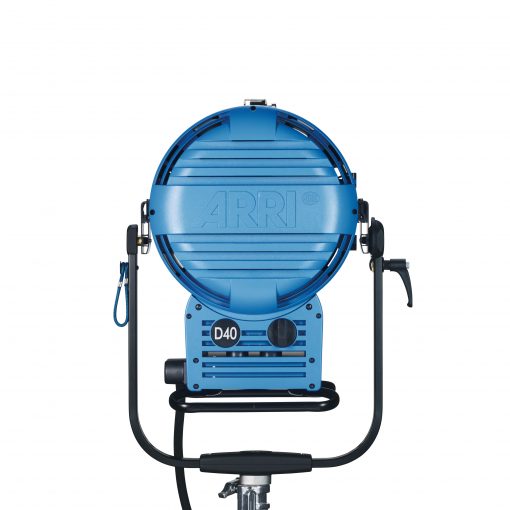

Where a lightweight Fresnel spotlight using daylight characteristics with compact size and high efficiency is needed, ARRI True Blue D-Series Fresnels are the preferred choice. ARRI’s elegant modular construction, using corrosion-resistant aluminium extrusions and lightweight die castings, offers great structural strength and weather resistance. Together with ARRI flicker-free Electronic Ballasts, the rugged True Blue D-Series is ideal for all types of location lighting.

Technical Data

ARRI True Blue D40 set Package Contents

PRODUCT SPECIFICATION EB425PL High Speed ballast 1200W incl. 1000Hz:

• Max Lamp Power    4000W
• Output Power Options    4kW, 2,5kW, 1,8kW, 1,2kw
• Output Frequency Options    1000Hz, 300Hz, 100Hz, Silent Mode
• Input Voltage Range    190-265V AC
• Current Draw    19,6A@230V
• Power Factor    >0.98
• DMX Built In    Yes
• Max Ambient Temperature    45°C/113°F
• Width    245mm/9,6″
• Height    270mm/10,6″
• Length    445mm/17,5″
• Weight    17.kg/37.6lb
