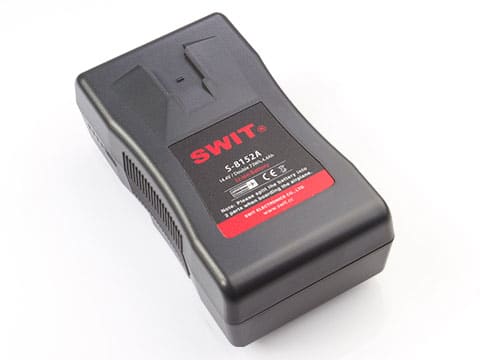

SWIT S-8152A, 146Wh FlySafe Battery, AB-Mount

Large Capacity Battery, Complied with IATA

Patented dividable battery design

The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs:

Since the large capacity batteries are quite necessary, SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8152A can be divided into 2 parts, and each part contains 73Wh capacity, not restricted by air transportation. And when using S-8152A, just assemble the 2 parts, you can get a Li-ion battery pack of 146Wh large capacity.

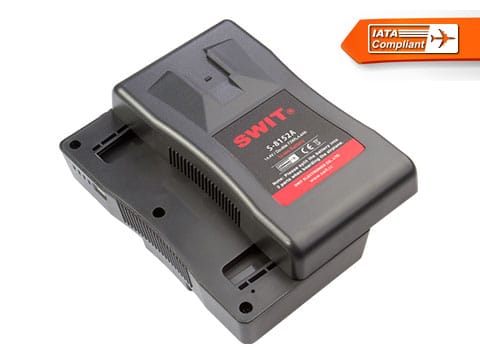

◆ Divide into 2 parts of 73Wh capacity each (Patent)
◆ Not restricted by IATA air transportation regulations
◆ Li-ion, 14.4V, 73+73Wh capacity
◆ D-tap output socket
◆ 4-level LED power indicator

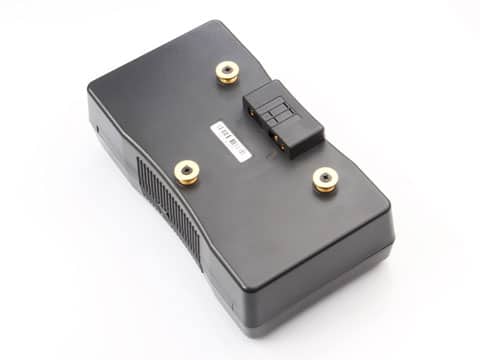

◆ Gold mount type connection
◆ Multiple circuit protections
Battery Capacity  Carry-on Baggage  Air Cargo Shipping
Under 100Wh      OK                             OK
100Wh-160Wh    Only 2pcs allowed     Not allowed
Over 160Wh       Not allowed                Not allowed

Nominal Voltage              14.4V
Capacity                           73+73Wh/5.1+5.1Ah
Max output power            100W
Max output current           8A
Mount Type                      Gold mount
Operation Temperature    0-40°C
Net weight                       Approx 1.05kg
Dimensions                     168×93×65mm

SWIT S-8152A Anton Bauer Mount Li-Ion Akku, 146Wh, Teilbar, Flugtauglich
