Produktinformationen “Swit S-8192S V-Mount Li-Ion Akku, 184Wh, Teilbar, Flugtauglich”
Mehr Energie – Mehr Sicherheit.
Mit dem S-8192S stellt SWIT den größten V-Mount Akku vor, der nach der 52. Auflage der IATA Vorschriften für den Transport von Lithium Ionen Akkus in Flugzeugen mitgenommen werden kann.
Mit 2x 92Wh können Sie Ihr Kamera oder Lichtequipment nun länger betreiben als mit allen herkömmlichen Akkutypen.
Aufnahme : V-Mount
Art : Li-Ion
Leistung : 184Wh / 12,8Ah (92+92Wh)
Maße : 168x101x60mm
Gewicht : 1,3kg
Output : 100W / 8,0A
Besonderheiten : D-Tap Ausgang, LED Ladestandsanzeige, Akku kann in zwei 92Wh Hälften geteilt werden, IATA compliant und darf bei Flügen ins Bordgepäck
Garantie : 2 Jahre (1 Jahr auf 70% Kapazität der Zellen)
Auch für Anton Bauer Mount erhältlich : Siehe SWIT S-8192A
Large Capacity Battery, Complied with IATA
Patented dividable battery design
The IATA DGR regulations restricted the air transportation of over 100Wh Li-ion battery packs:
Battery Capacity Carry-on Baggage Air Cargo Shipping
Under 100Wh OK OK
100Wh-160Wh Only 2pcs allowed Not allowed
Over 160Wh Not allowed Not allowed
Since the large capacity batteries are quite necessary, SWIT provides the solution of Dividable Battery to comply with IATA regulations. S-8192S can be divided into 2 parts, and each part contains 92Wh capacity, not restricted by air transportation. And when using S-8192S, just assemble the 2 parts, you can get a Li-ion battery pack of 184Wh large capacity.
Nominal Voltage 14.4V
Capacity 63+63Wh/4.4+4.4Ah
Max output power 100W
Max output current 8A
Mount Type V-mount
Operation Temperature 0-40°C
Net weight Approx 1.01kg
Dimensions 168×93×60mm

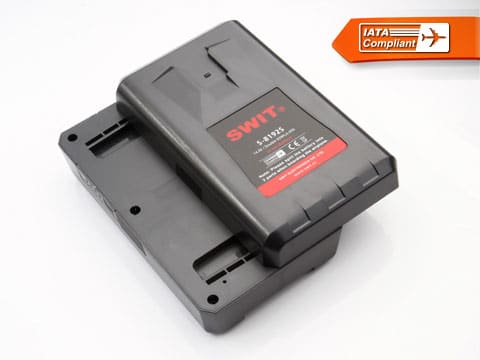

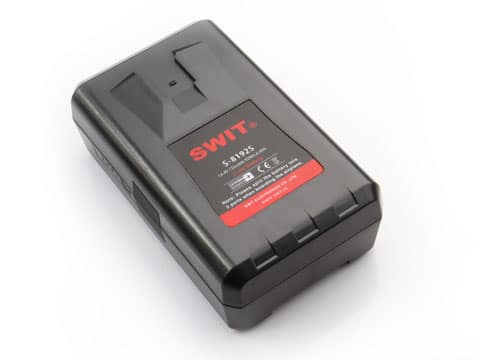

S-8192S 92+92Wh Dividable V-mount Battery Pack

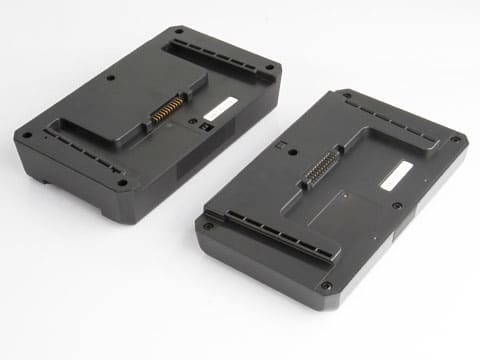

◆ Divide into 2 parts of 92Wh capacity
each (Patent)
◆ Not restricted by IATA air
transportation regulations
◆ Li-ion, 14.4V, 92+92Wh capacity
◆ D-tap output socket
◆ 4-level LED power indicator

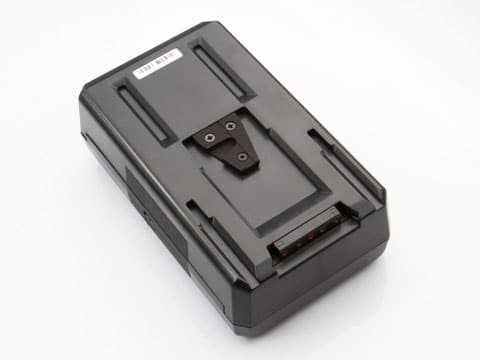

◆ V-mount connection
◆ Multiple circuit protections
