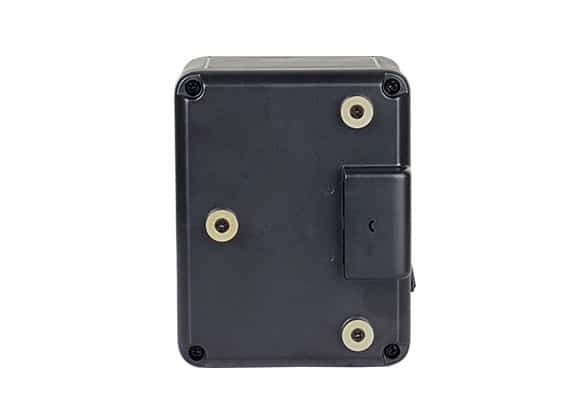

Square shape design for Cine-cameras

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

220Wh / 15.3Ah Capacity

Consists of 24pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 220Wh / 15.3Ah high capacity. Can run approx 7 hours for normal ENG cameras and approx 2.5 hours for ARRI ALEXA.

High Load for Cine Cameras

At least 150W / 12A load

PB-S220A provides at least 150W/12A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 14A

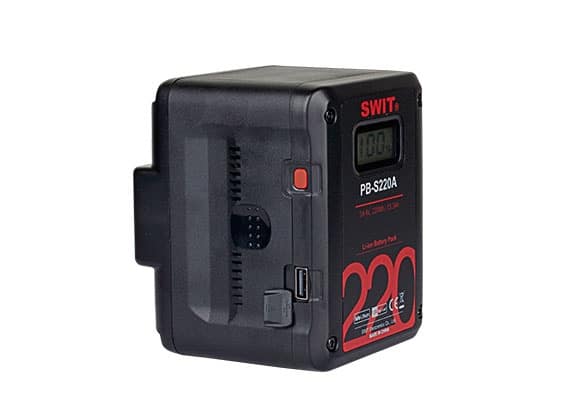

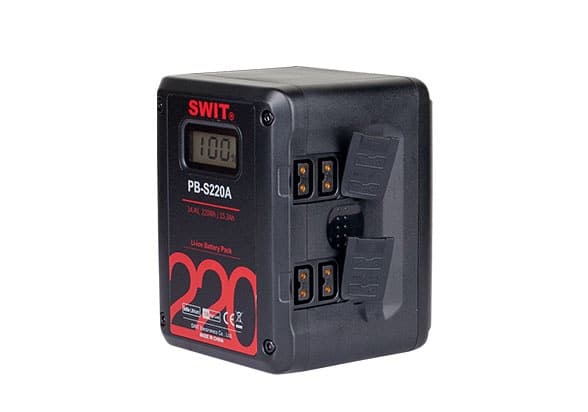

4× D-tap, 1× USB

PB-S220A provides 4x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

6A Fast Charging

Using SWIT S-3812A fast charger

PB-S220A supports 6A fast charging by SWIT S-3812 fast charger, to save more than 50% charging time. The 220Wh PB-S220A battery can be charged from 0 to 80% after 2.3 hours, and fully charged within 3.5 hours.

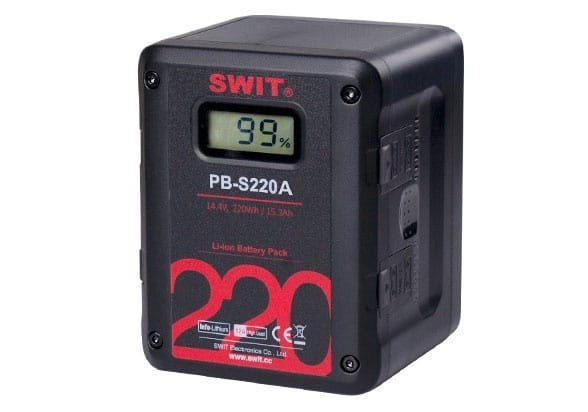

Digital Power Info

LCD display accurate remaining run time

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times.
