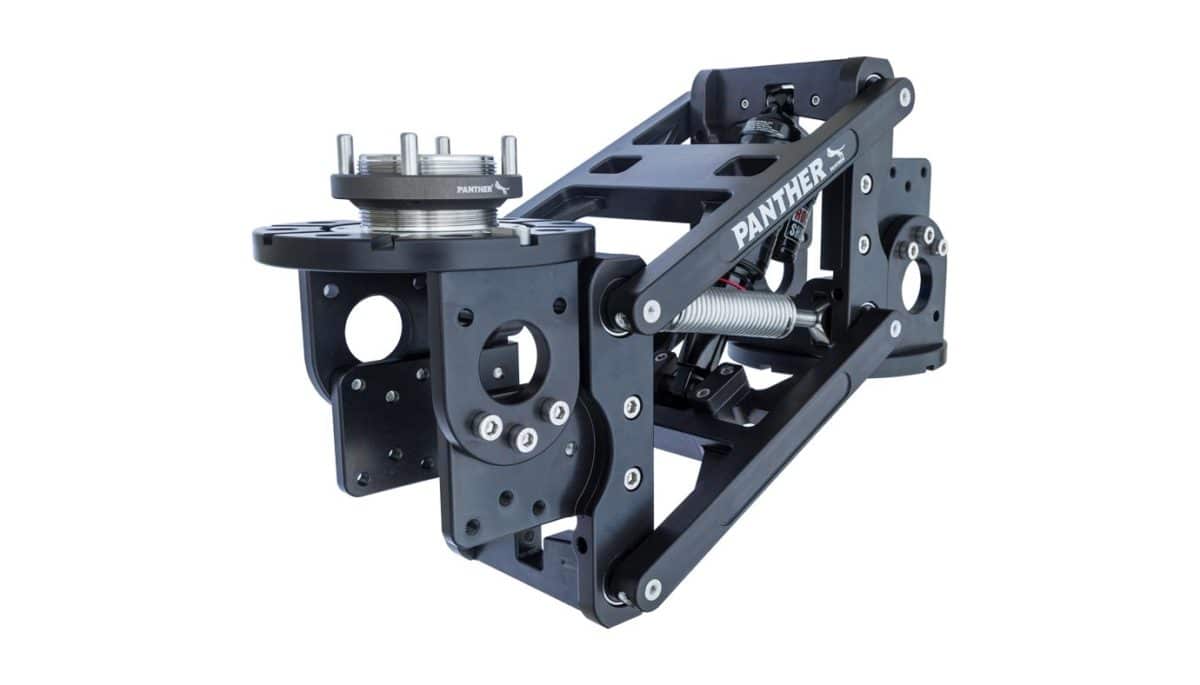

Mini Shock Absorber Pro
For a smooth footage
Vertical vibrations are absorbed by the Mini Shock Absorber Pro (311492). Remote Heads but also stabilized heads will be supported additionally to achieve a perfect result.
The Mini Shock Absorber Pro is an All-In-One solution, designed to handle every payload up to 80 kg / 176 lbs.
This is done by changing the springs (toolfree). You can use it without springs, with one and with two springs.
Without Springs
10-12 kg / 22-26 lbs
Spring “light”
(311484)
(311484)
10-25 kg / 22-55 lbs
You can use either one or two springs (depending on payload).
Spring “medium”
(311485)
(311485)
15-35 kg / 33-77 lbs
You can use either one or two springs (depending on payload).
Spring “strong”
(311486)
(311486)
25-55 kg / 55-121 lbs
You can use either one or two springs (depending on payload).
Spring “super strong”
(311487)
(311487)
35-80 kg / 77-176 lbs
You can use either one or two springs (depending on payload).
34,2 cm / 13,5″
(Mitchell Plate – Center to Center)
        Springs            Payload (depending on air pressure)          Code
- without springs                      10-12 kg / 22-26 lbs (with 3 bar)
- 1x Spring “light”                     10-20 kg / 22-44 lbs                                     311484
- 2x Spring “light”                    15-25 kg / 33-55 lbs
- 1x Spring “medium”              15-25 kg / 33-55 lbs                                        311485
- 2x Spring “medium”          25-35 kg / 55-77 lbs
- 1x Spring “strong”              25-35 kg / 55-77 lbs                                      311486
- 2x Spring “strong”                45-55 kg / 99-121 lbs
- 1x Spring “super strong”  35-45 kg / 77-99 lbs                                          311487
- 2x Spring “super strong”  65-80 kg / 143-176 lbs
MOUNTS
For any situation
The Mini Shock Absorber Pro has different mounts available.
Mitchell Mount (Over-, Underslung and Nose Mount 90°)
*already included*
130 / 150mm Mount
310390
Speedrail /Â Scaffold Mount (48mm)
310422
Over-, Underslung and Nose Mount
The Mitchell connection plates can be mounted Overslung, Underslung and vertical (Nose Mount / 90°).
DAMPENING
Adjust it to your needs
Dampening Adjustment
The level of dampening can be easily adjusted according to your requirements.
