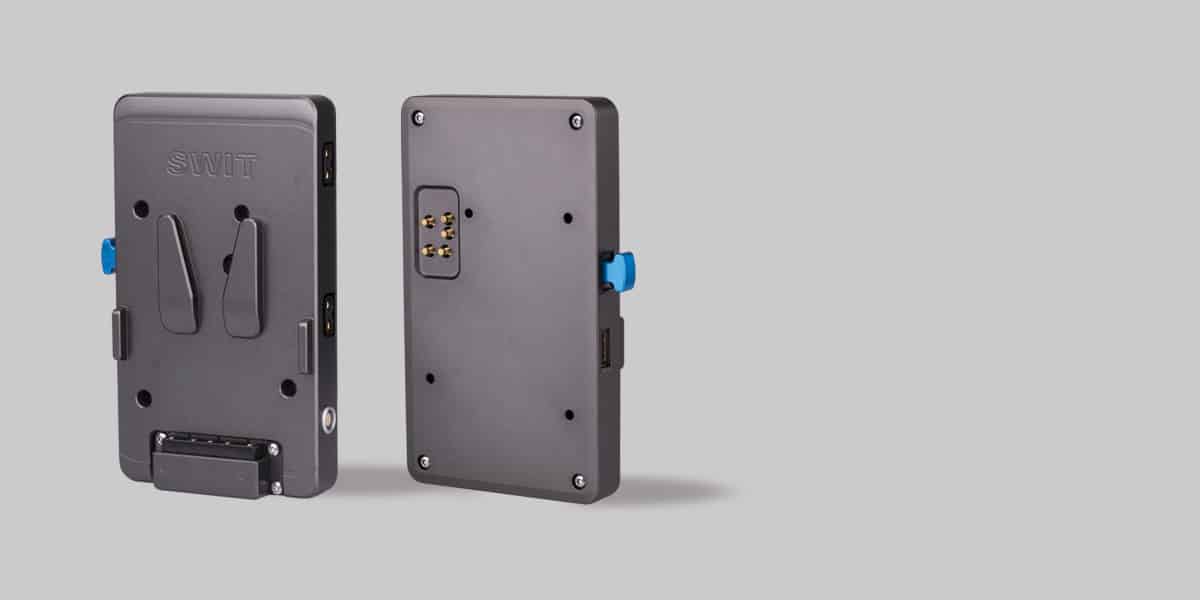

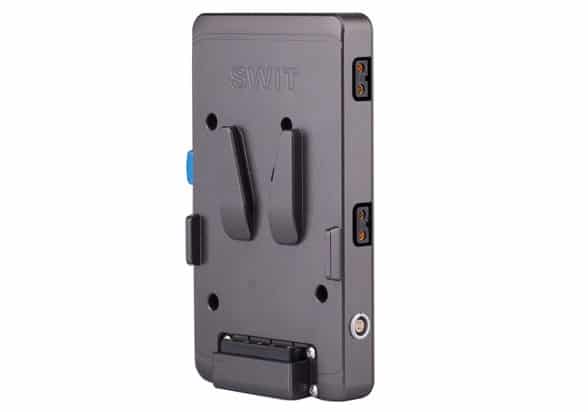

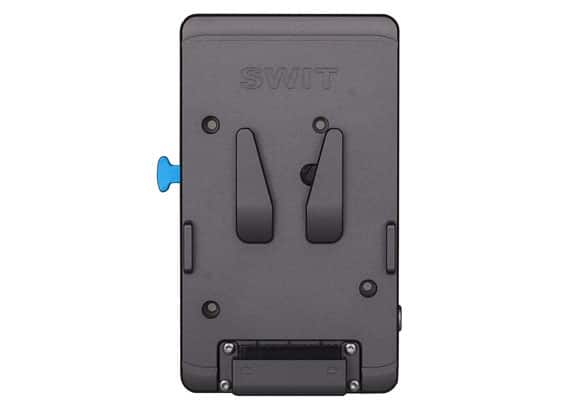

KA-A20S ALEXA V-mount Plate

ALEXA Dedicated V-mount Plate

Aluminum CNC unibody housing

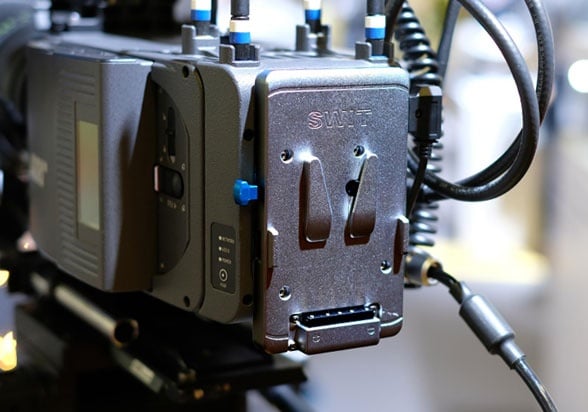

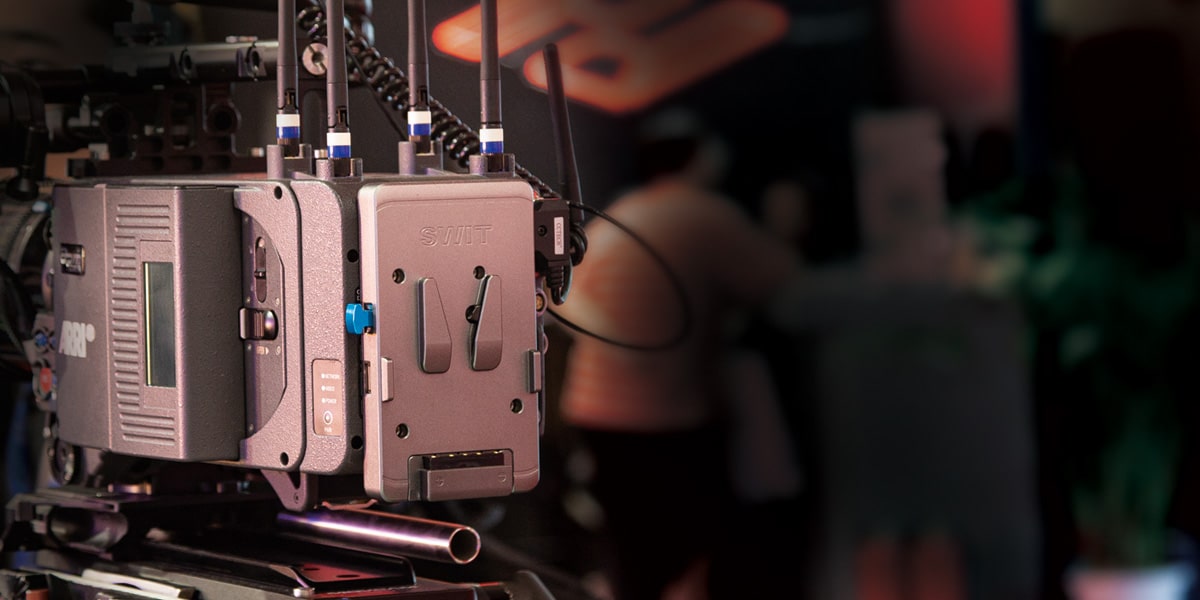

The V-mount plate KA-A20S is designed for ARRI ALEXA LF, ALEXA 65, ALEXA SXT and AMIRA, with Aluminum CNC unibody housing, perfectly match with ALEXA cameras, robust and reliable.

High Voltage to ALEXA

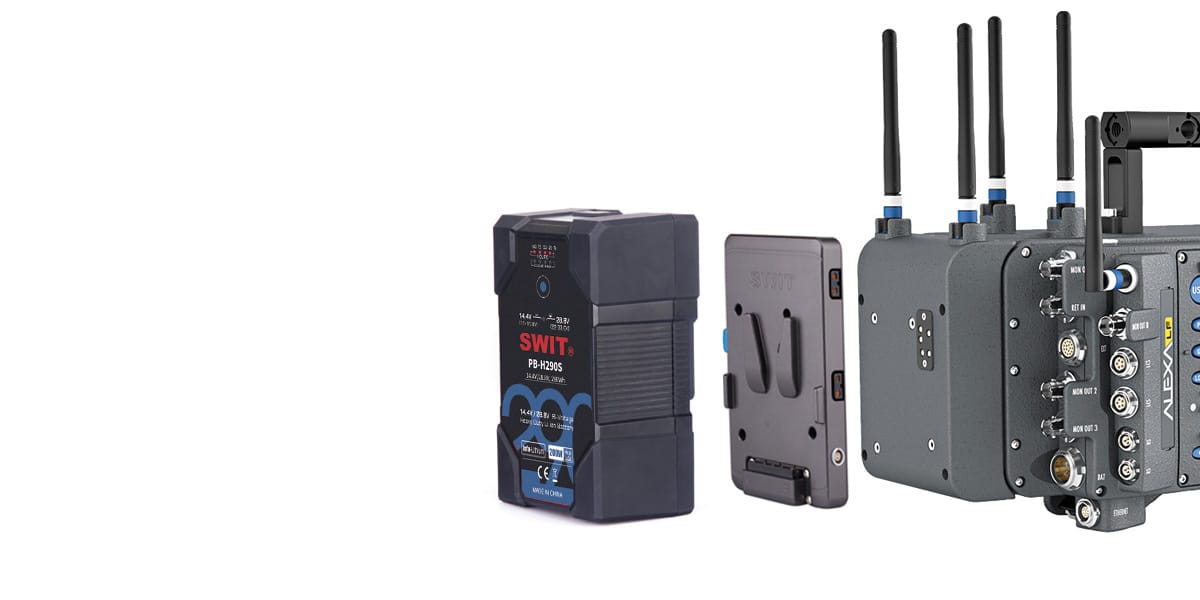

Match with PB-H290S to output 22-33.6V

SWIT Bi-voltage battery PB-H290S can recognize the KA-A20S plate and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.
Use other batteries, the KA-A20S plate will not change voltage, and directly power the camera.

High Load Reliable Pins

Battery Contact Pins:

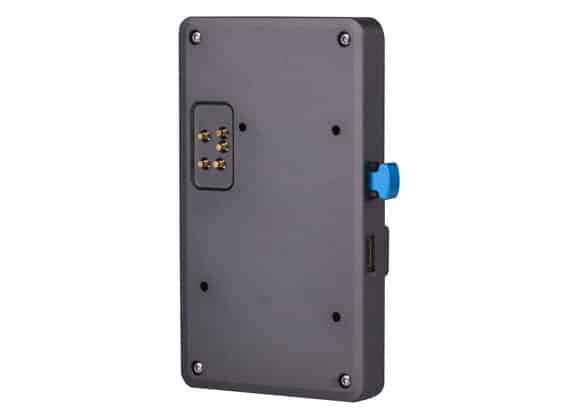

Unique lantern type pins, wider contact surface, support Max 16A current without overheating; Camera Contact Pins:
Copper rod direct conducting (instead of spring conducting), and the strong spring makes fully contact with camera pins, ensure 10A reliable current and prevent overheat.

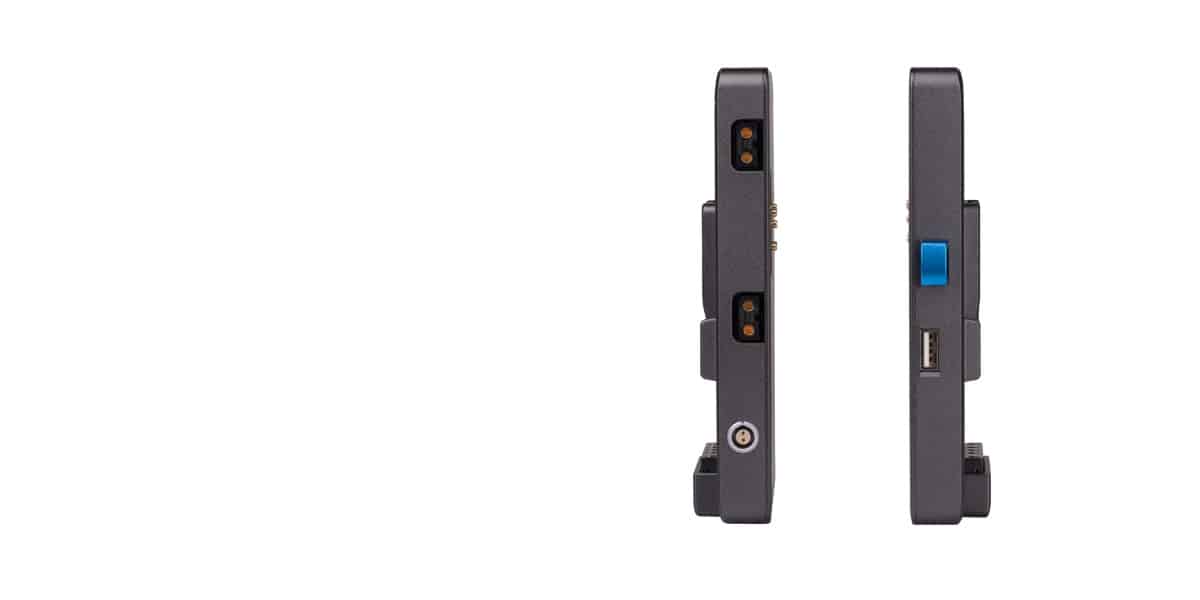

Multi DC Sockets

D-tap / LEMO / USB

KA-A20S plate provides 2x D-tap, 1x 2-pin LEMO and 1x 5V/2A USB output.
Under 22-33.6V power, the D-tap and LEMO outputs constant 16V, Max 6A;
Under 11-16.8V power, the D-tap and LEMO outputs original battery power.
