14.4V/28.8V Bi-Voltage

Auto detect and switching

Many high power film devices are designed 22-33.6V high power input, to reduce current. If a standard V-mount battery output high voltage directly, it will damage normal 14.4V voltage devices.
SWIT innovative “Bi-voltage” battery adopts standard V-mount, and output 11-16.8V normal voltage or 22-33.6V high voltage by automatic recognition and switching, and compatible for all normal voltage char- gers, safe and reliable.

Active 22-33.6V output

By SWIT Dedicated plate

PB-H260S will detect SWIT dedicated V-mount plate and output 22-33.6V high voltage.
The dedicated plate includes:
1. KA-A20S ALEXA/AMIRA plate. Power ALEXA LF at 22-33.6V high voltage.
2. TD-R210S Dual Batteries Light Stand Adaptor, Max 48V/500W output, for Skypanel S60/S120 100% output.

Active 22-33.6V output

By “Magic Stick” on any third-party standard V-mount plate

Attach the Magic Sticker on the particular posi- tion of any standard 3rd party V-mount plates, and mount PB-H260S on, the PB-H260S will detect the Magic Sticker and automatically output 22-33.6V voltage.
Please make sure the device installed with the V-mount plate supports 22-33.6V input. And when PB-H260S battery outputs 22-33.6V, please mind the V-mount plates D-tap socket (if they have) will output 22-33.6V voltage as well.

260Wh Capacity, 350W High Load

PB-H260S consists of 24pcs high class 18650 battery cells, and reaches 260Wh high capacity.
On 11-16.8V output, the Max constant load is 200W;
On 22-33.6V output, the Max constant load is 350W;
To drive high power cine camera and lights, and the high load battery will have longer life time than normal battery if always under full load power.

6A Fast Charging

Using SWIT S-3812S fast charger

PB-H260S supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time, can be charged from 0 to 80% after 2 hours 15 minutes, and fully charged within 4 hours.

When battery is discharging:

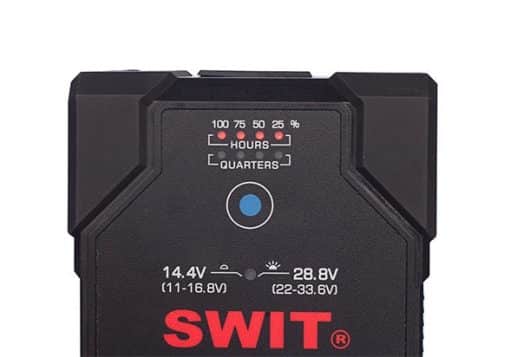

Press “Power Check” button, Upper 4 LEDs display remaining working hours, and Lower 4 LEDs display remaining working minutes, under current output power. The LED will flash when remaining time is less than 15 minutes to remind changing battery.
When battery is charging:
Upper 4 LEDs flashing constantly, indicates the real-time capacity percentage 25%, 50%, 75% and 100%.
When battery is free:
Press “Power Check” button, Upper 4 LEDs light up, to indicate the remaining capacity percentage 25%, 50%, 75% and 100%.

Strong 1.5m Drop-off Proof

Dual housing + Rubber cover

PB-H260S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
