FOXY PRO JIB

The next step. Smaller.

Sometimes it’s the small things

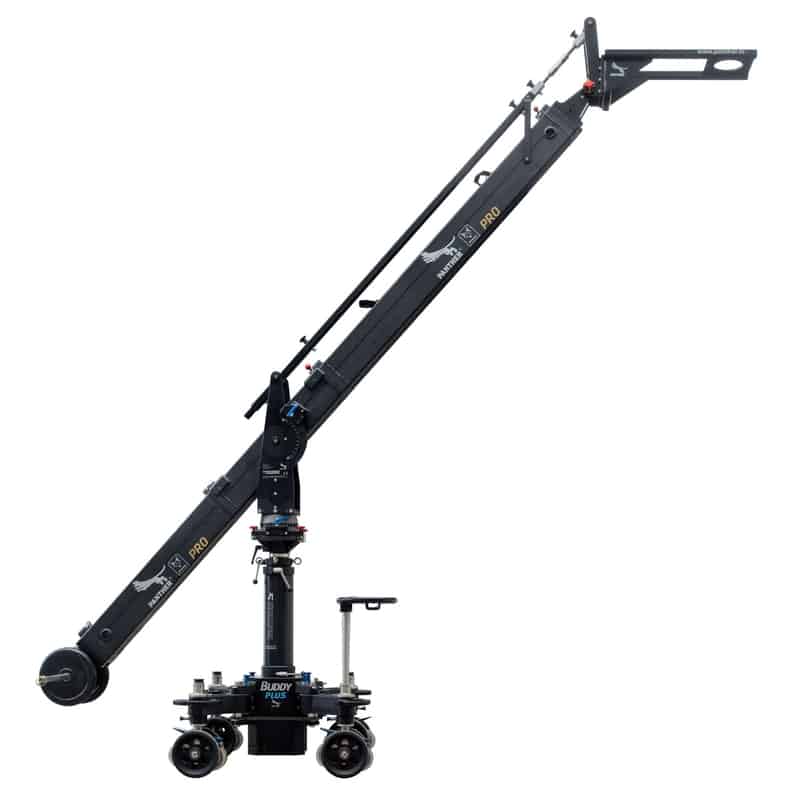

The Foxy Pro can be used as a Jib Arm due to a Euro-Foxy Adaper (159541). Use your Panther dolly as base. Also dollies without an electro-mechanical column can be used for the Foxy Pro Jib – for example the Buddy Plus dolly by using a bazooka.

COMPATIBLE

Connect it

Various Foxy adapters enable a perfect and easy connection of Foxy Pro Jib. So you can easily adapt to Euro adapter and Mitchell. With the Center Mount the Foxy Pro Jib can be used on many kinds of dollies (Panther, Fisher, Chapman, etc.)

159541
Euro-Foxy Adapter

302378
Mitchell-Foxy Adapter

302359
Center Mount

COMPACT DESIGN

Fits everywhere

A high payload (up to 80 kg / 176 lbs) and the max. length of 5,7 m / 18,7 ft. covers all your requirements on set.

‍
With a min. length of the rear side of 65cm / 25,6″ the Foxy Pro Jib can also be operated very easy if your space is limited.

COUNTERWEIGHT

Choose the one you need

Bar or Bucket

You can choose between a Weight bar or a Counter Weight Bucket for 18 weights – depending on your requirements on location.

159559
Weight bar Ø 25mm / 82cm | Ø 1″ / 32″

59559
Weight bar Ø 25mm / 82cm | Ø 1″ / 32″

Rubberized rounded weights are perfect for the Jib Arm version of Foxy Pro. A soft but still non-slip surface ensures optimum handling. They can be also used in other systems, such as the Pixy Plus crane. A separately available weight bar is needed.

Rounded Weights

100015 Weight Round (rubber coated) 2,5 kg / 5,5 lbs
100023 Weight Round (rubber coated) 5 kg / 11 lbs
100009 Weight Round (rubber coated) 10 kg / 22 lbs
302203 Weight Round (rubber coated) 15 kg / 33 lbs
302204 Weight Round (rubber coated) 20 kg / 44 lbs

Counter Weight for Bucket

109023 Weight 17 kg / 37,5 lbs

TECHNICAL DATA

Let’s talk about facts

Foxy Pro Crane

If you want to be even longer than the Jib version, it’s easy to upgrade to a full Foxy Pro crane.

Weight	250 kg
Jib Versions	Jib Version 1 without rear autrigger (2,7m /9ft.) payload 50kg, Jib Version 1 (2,7m /9ft.) payload 80kg, Jib Version 2 (4,2m /13,5ft.) payload 80kg, Jib Version 3 (5,7m /18,5ft.) payload 40kg
