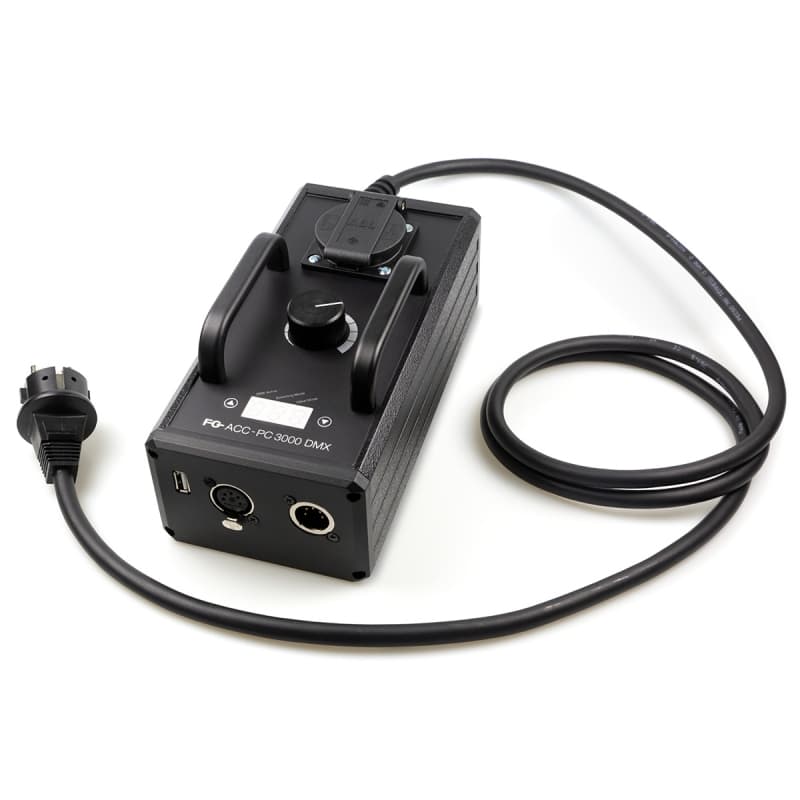

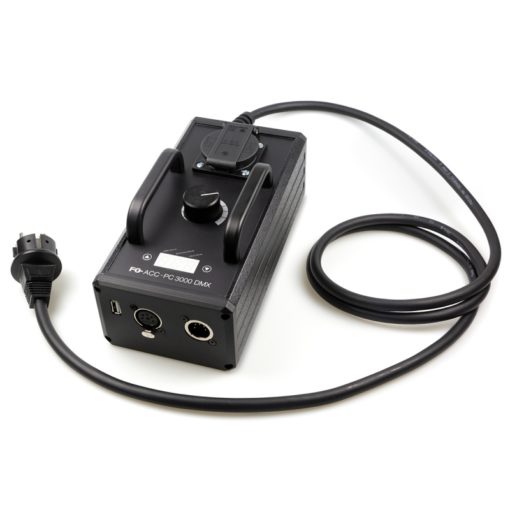

• compact phase angle control for ohmic loads up to 3000 W
• DMX control or manual operation via rotary potentiometer
• linearized power setting
• automatic adaptation to frequency fluctuations
• extremely robust with solid protection brackets
• powerCON socket (delivery without cable !)
• USB socket, e.g. for wireless operation

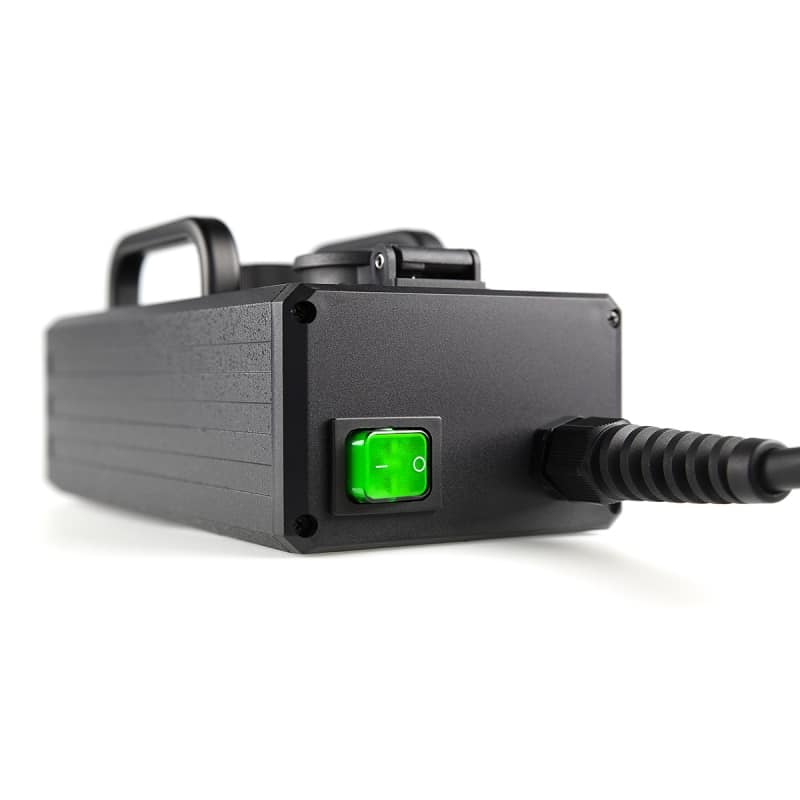

• on/off switch
• mounting bracket with M10 thread available

technical data

• suitable for:  ohmic loads, e.g. spotlights
• control mode : potentiometer
• input voltage : typically 230VAC/50Hz
• output power: max. 3000W; minimum load 40W
• frequency: 40 ~ 70Hz
• output current: max. 13A
• DMX
