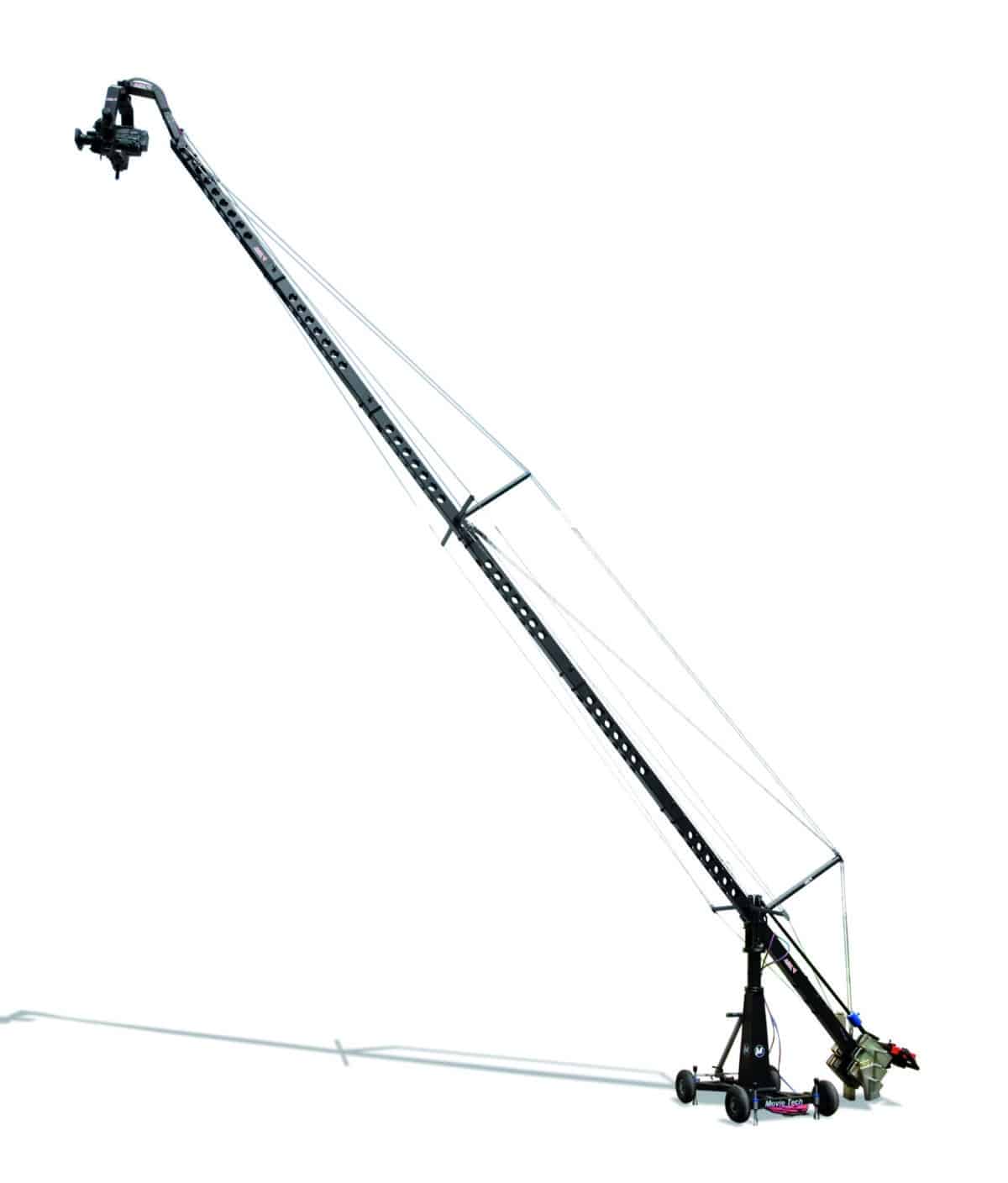

Crane 120-10.5 – The crane for ambitious travelogue HDV, HD, Film (Part No. 8315-01)

• Short assembly times! Approx 30 minutes for XL version
• Light construction with square profiles 12×12 cm (4,72 inch), provides extreme rigidity
  Additionally crane segments are bolted together for optimum resistance to torsion!
• High weight capacity of 20 kg (44,09 lb) in version 10.5 (33.89ft)
• 5 different assembly lengths included

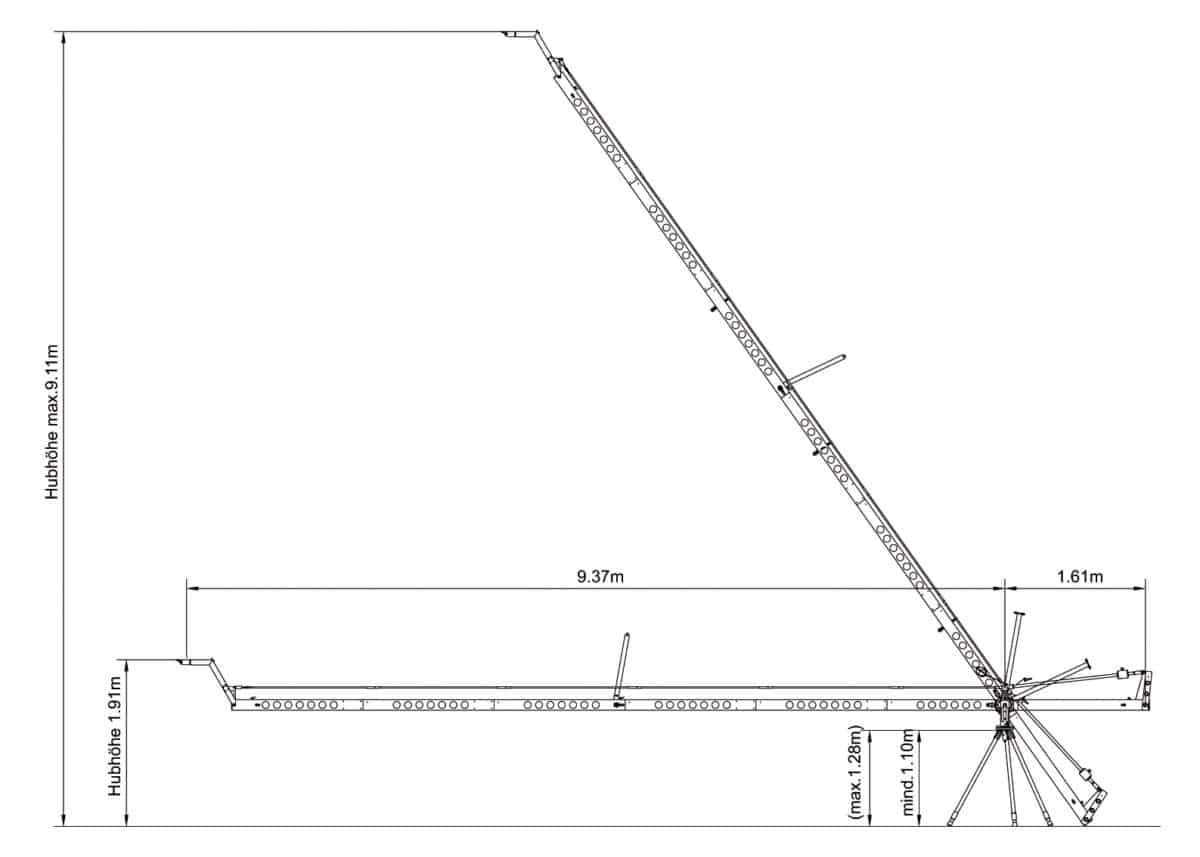

Crane lengths in various assembling versions

Technical Data

Package includes:

Main bags 1 and 2 including:

• 1 Crane-head segment
• 1 End segment
• 1 Extension segment / 9m (29.52 ft) with outrigger
• 1 Main segment
• 2 Extension segments
• 3 Weight tubes / safety rings
• 1 Counterweight rod with leveling weight

Additionally:

• 1 Hex-wrench 0.196 inch
• 1 Manual

Accessory case including:

• 1 Crane support
• 1 Clamp unit (brake) with clamp lever
• 1 Quick-pin 10 mm / 0.393 inch
• 1 Water-level integrated
• 1 Control trim rig for Remote Head
• 1 Weight bracket (Ø 30 mm / 1.18 inch, Length 800 mm / 31.49 inch)
• 1 Star screw M 12 for Main segment
• 1 Crane-head with Euro mount connection for Remote Headv
• 1 Bolt Set M6 segment screws 15 pcs. + 3 spare screws
• 1 Case Rig Set for version 4,7 / 6,2 / 7,7
• 1 Case Rig Set for version 9
