ABC MiniCrane 520

€ 2.690,00 excl. VAT

Request a quote
SKU: 8318-01 Category: Brand:

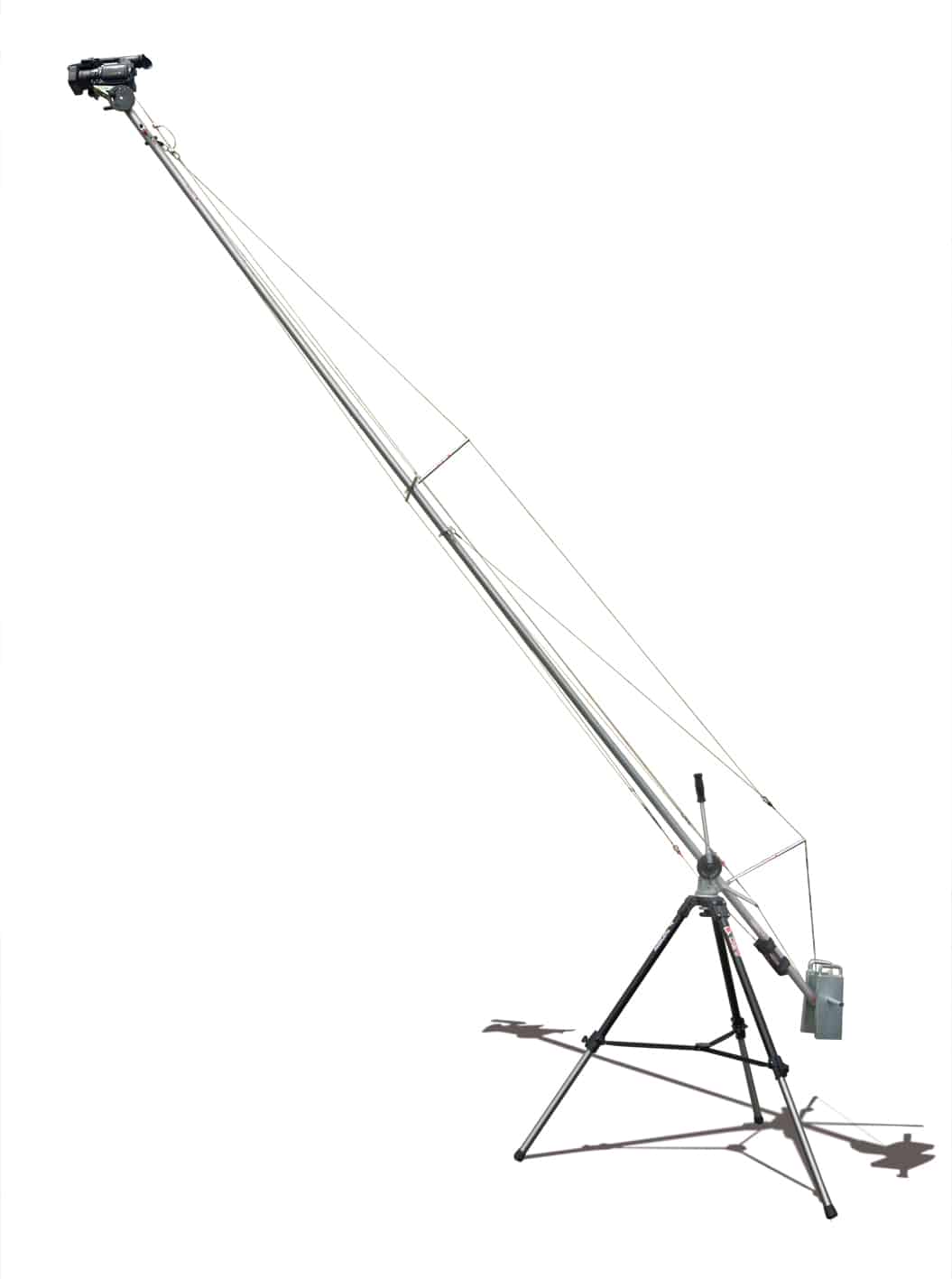

MiniCrane 520  – Cameras up to 3.5 kg/7.71 lb (Part No. 8318-01)

  • Extremely short assembling times! (complete assembly in approx. 7 minutes!)
  • Wired rigs are separately colored – no danger of mix-up!
  • 4 different assembly lenghts including respective complete rig sets (small/medium/large – Details see technical data sheet)!
  • Horizontal brake
  • Universally deployable indoors- (short tower tube) as well as outdoors for high flexibility

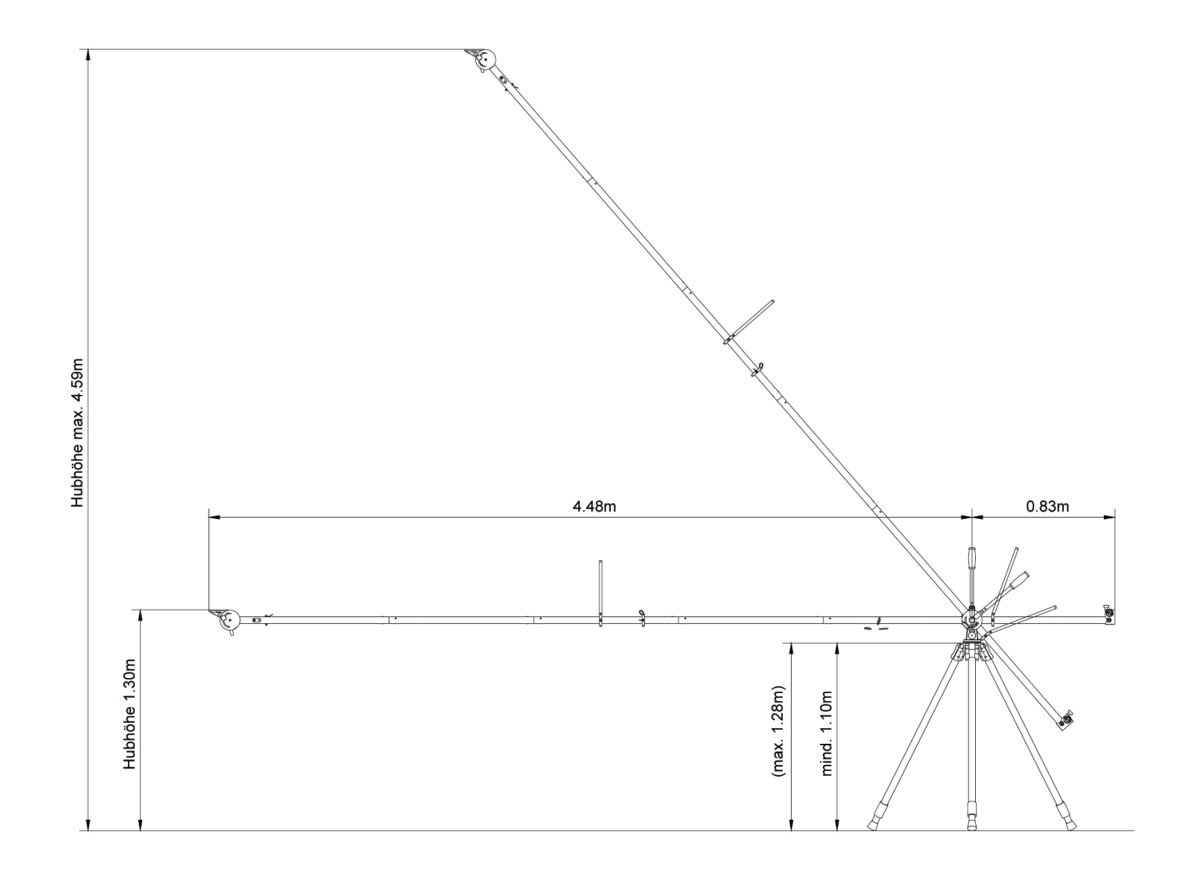

Crane lengths in various assembling versions

max. camera weightFront crane armBack crane armTotal length
.in pounds kilogramin feet meterin feet meterin feet meter
Large version „L“9.12 ft / 2,78 m2.72 ft / 0,83 m11.84 ft / 3,61 m
Medium version „M“5.94 ft / 1,81 m2.72 ft / 0,83 m8.73 ft / 2,66 m
Short version „S“3.12 ft / 0,95 m2.72 ft / 0,83 m5.90 ft / 1,80 m
MiniCrane 5207.72 lb / 3,5 kg14.70 ft / 4,48 m2.72 ft / 0,83 m17.42 ft / 5,31 m

Technical Data

MiniCraneMiniCrane 520
Weight19,62 lb / 8,9 kg
Dimension when packed39.4 x 9.4 x 9.8 in / 100 x 24 x 25 cm
Max. payload7.72 / 3.5 kg
Counterweight50.53 lb / 22,92 kg
Weights split2 x 17.64 lb ; 8.82 lb / 2 x 8 kg ; 4 kg

Package includes:

  • 1 Crane segment with crane prop (base element for tripod assembly)
  • 3 Extension segments
  • 1 Extension segment incl. additional outrigger

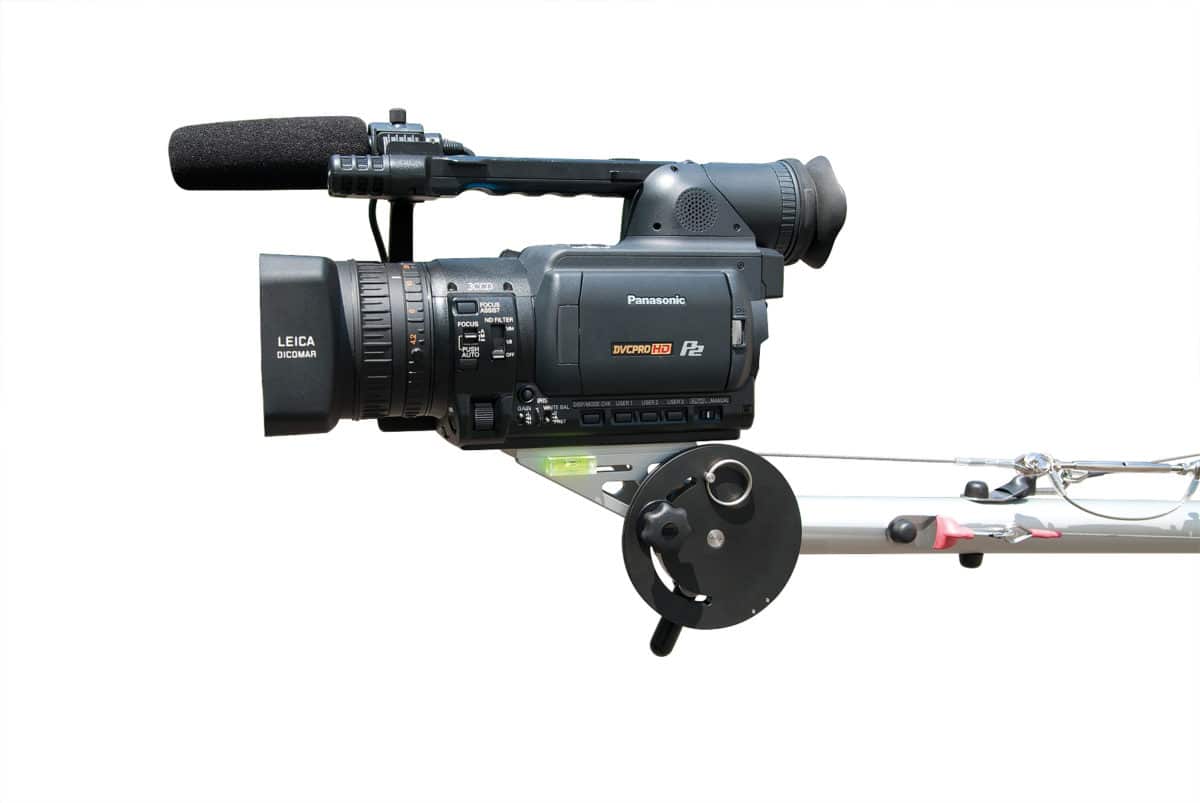

  • 1 Segment with crane-head
  • 1 Camera screw ¼ inch
  • 1 Camera screw 3/8 inch
  • 1 Rig Set for assembly length “small”
  • 1 Rig Set for assembly length “medium”
  • 1 Rig Set for assembly length “large”
  • Rig Set for assembly length “X-large” 1 Fine trimmer for additional weights
  • 1 Weight support bar (Ø 24mm / 0.94 inch, Length 400mm / 15.74 inch)
  • 2 Safety pins for counterweights

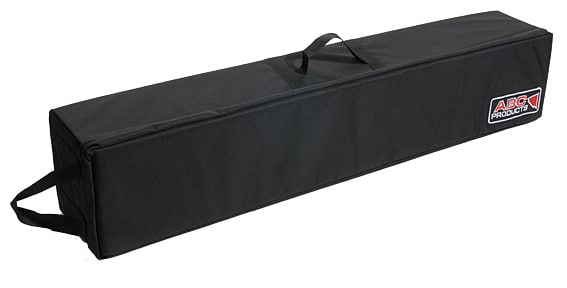

  • 1 Transport soft-case
  • 1 Manual
Each Rig Set includes 4 individual rigs: 2 rigs for lateral bracing, 1 tower rig holds the crane weight, and 1 control rig
