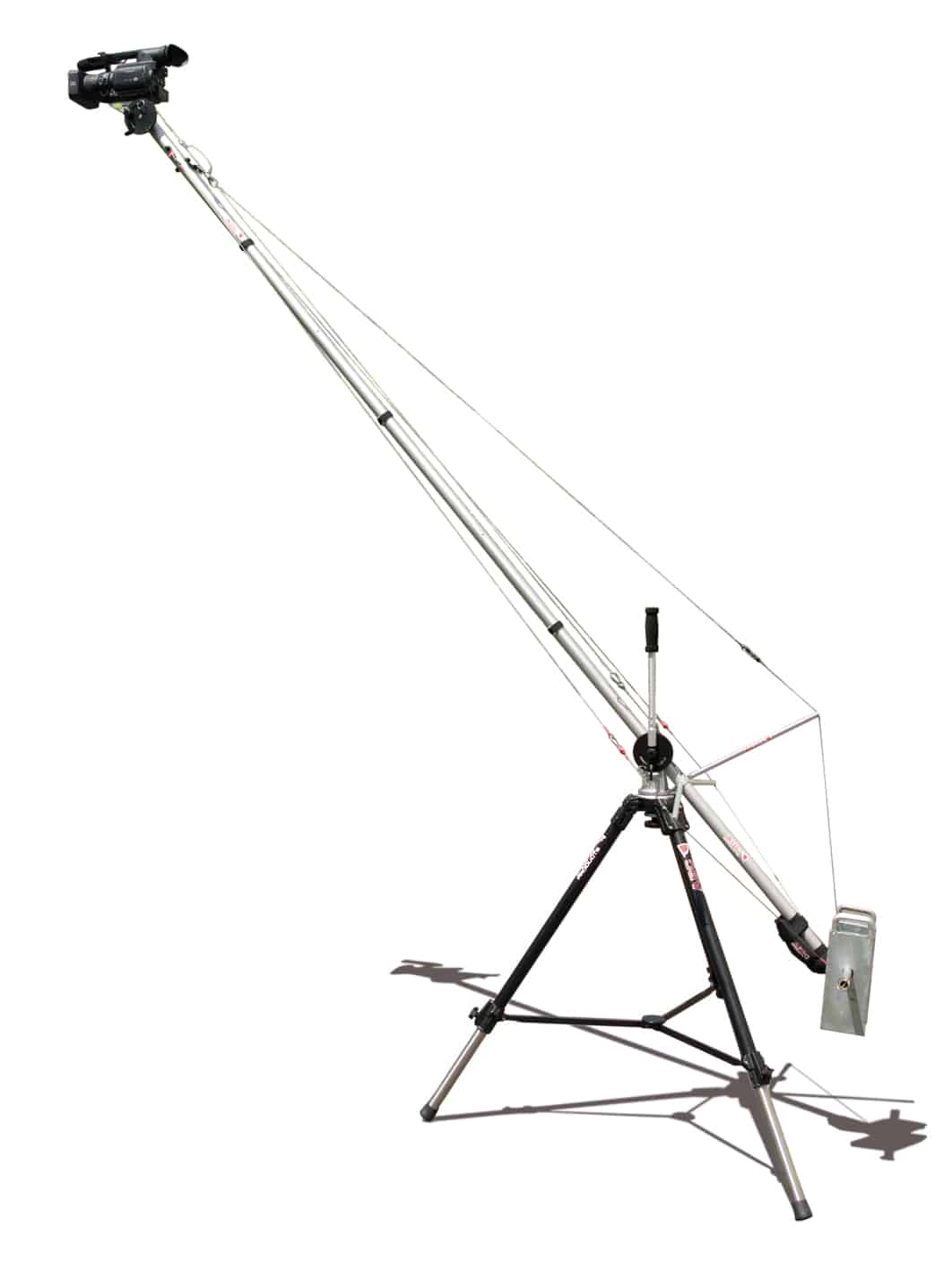

MiniCrane 350 – For cameras up to 5 kg/11.02 lb (Part No. 8318-0)
- Extremely short assembling times! (complete assembly in approx. 7 minutes!)
- Wired rigs are separately colored – no danger of mix-up!
- 3 different assembly lenghts including respective complete rig sets (small/medium/large – Details see technical data sheet)!
- Horizontal brake
- Universally deployable indoors- (short tower tube) as well as outdoors for high flexibility

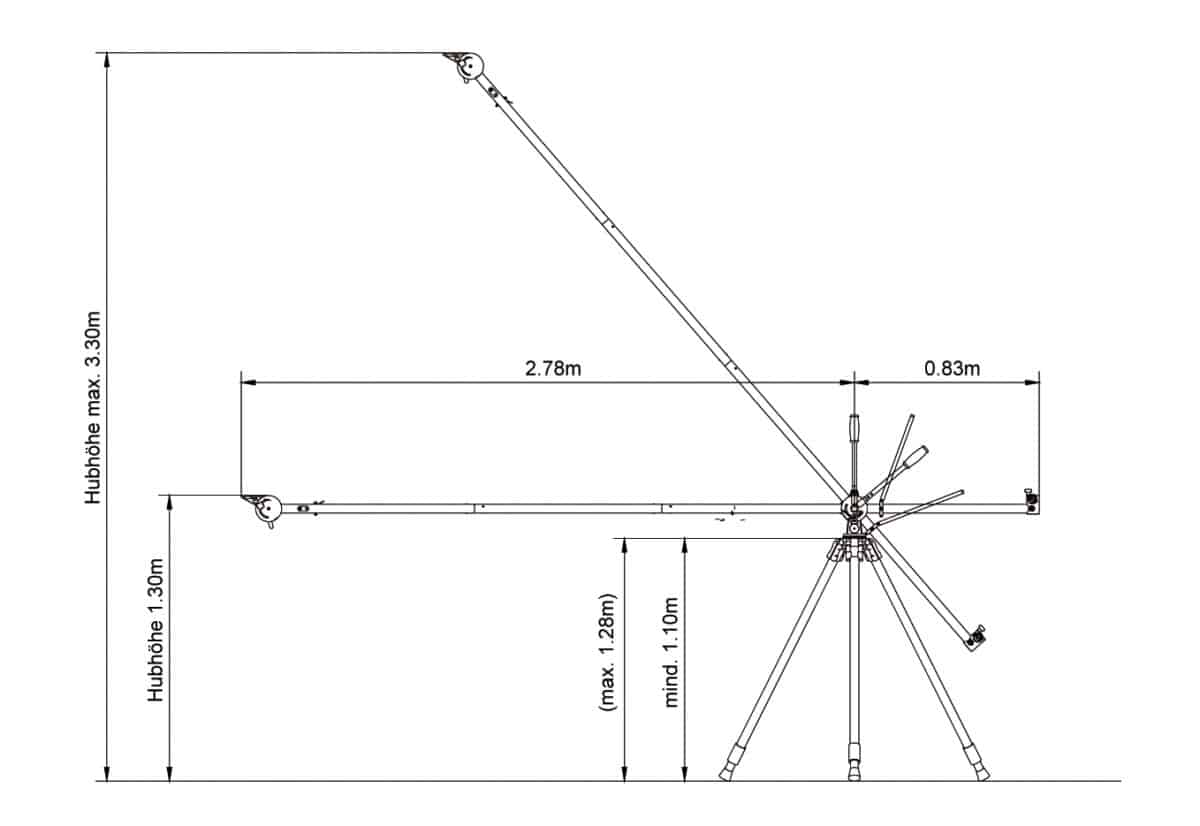

Crane lengths in various assembling versions
| max. camera weight | Front crane arm | Back crane arm | Total length | |
| . | in pounds kilogram | in feet meter | in feet meter | in feet meter |
| MiniCrane 350 | 11.02 lb / 5 kg | |||
| Large version „L“ | 9.12 ft / 2,78 m | 2.72 ft / 0,83 m | 11.84 ft / 3,61 m | |
| Medium version „M“ | 5.94 ft / 1,81 m | 2.72 ft / 0,83 m | 8.73 ft / 2,66 m | |
| Short version „S“ | 3.12 ft / 0,95 m | 2.72 ft / 0,83 m | 5.90 ft / 1,80 m |
Technical Data
| MiniCrane | MiniCrane 350 | MiniCrane |
| Weight | 15.21 lb / 6,9 kg | Weight/ Gewicht |
| Dimension when packed | 39.4 x 9.4 x 9.8 in / 100 x 24 x 25 cm | Dimension when packed / Packmaße |
| Max. payload | 11 lb / 5 kg | Max. payload / Max. Zuladung |
| Counterweight | 41.73 lb / 18,93 kg | Counterweight / Gegengewicht |
| Weights split | 2 x 17.64 lb ; 8.82 lb / 2 x 8 kg ; 4 kg | Weights split / Gewichtsstückelung |
| MiniCrane | MiniCrane 350 | MiniCrane |
Package includes:
- 1 Crane segment with crane prop (base element for tripod assembly)
- 2 Extension segments
- 1 Extension segment incl. additional outrigger
- 1 Segment with crane-head
- 1 Camera screw ¼ inch
- 1 Camera screw 3/8 inch
- 1 Rig Set for assembly length “small”
- 1 Rig Set for assembly length “medium”
- 1 Rig Set for assembly length “large”
- 1 Weight support bar (Ø 24mm / 0.94 inch, Length 400mm / 15.74 inch)
- 2 Safety pins for counterweights
- 1 Transport soft-case
- 1 Manual
Each Rig Set includes 4 individual rigs: 2 rigs for lateral bracing, 1 tower rig holds the crane weight, and 1 control rig
