• Separable king post for more space allowance indoors!
• Light construction with square profiles 9 x 9 cm (3.54 inch), provides extreme rigidity!
  Additionally, crane segments are bolted together for optimum resistance to torsion!
• Circular openings in the segments provide for weight reduction
• High weight addition of 20 kg (44.09 lb) in version 8
• Short assembly times! (complete assembly in approx. 20 minutes!)
• 3 different assembly lengths incl. strengthened rig sets (small/medium/large) (for details see technical data sheet!)
• Operation with strengthened tripod 132X
• System is universally deployable may be used with strengthened “Bull Stand or Dolly CD5/CD 6”

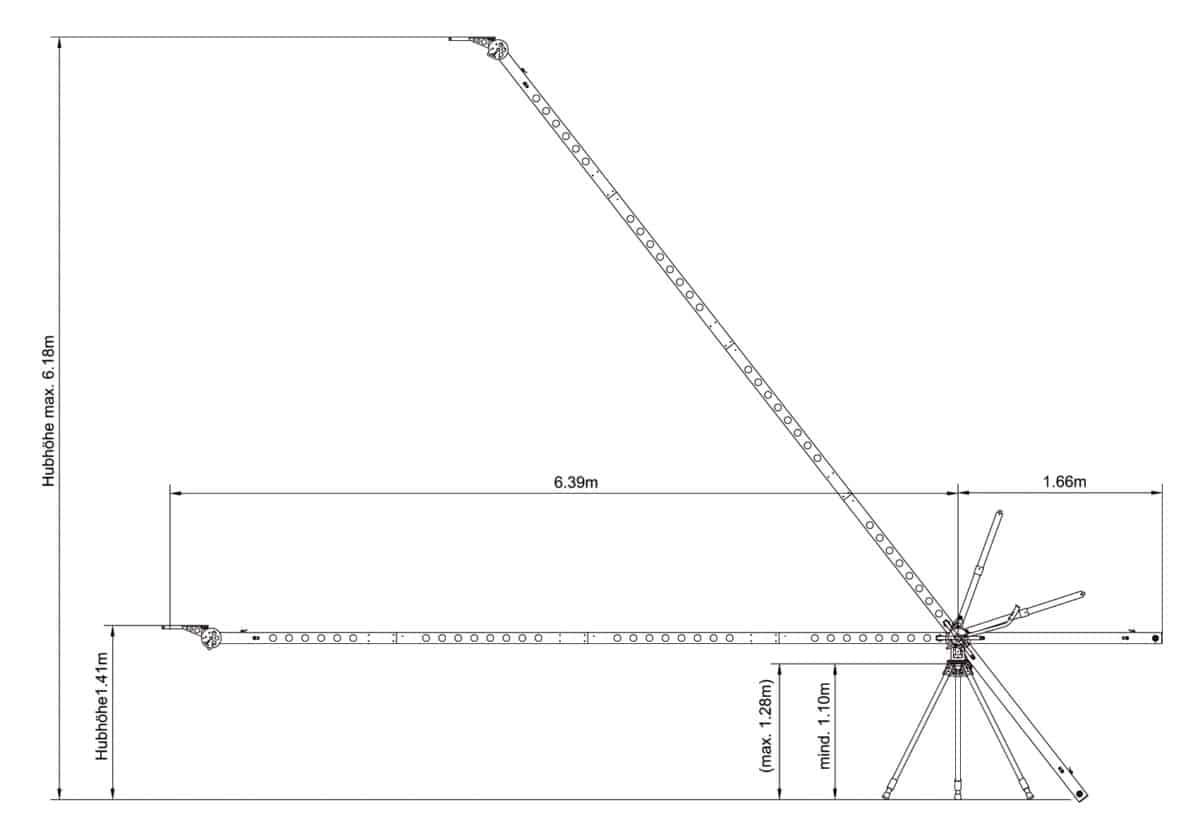

Crane lenghts in various assembling versions

Technical Data

Package includes:

• 1 Crane-head segment
• 1 End segment
• 2 Extension segments
• 1 Main segment with foldable outrigger and two-piece tower-tube
• 1 Weight tube / safety rings
• 1 Crane prop
• 1 Clamp unit (brake) with clamp lever
• 1 Hand-adjustment lever (control rig crane head angle)
• 2 integrated water-levels
• 1 Star screw M12 for crane prop
• 1 Crane-head with Euro mount connection for Remote Head
• 1 Rig Set 3 control rigs for crane angle setup
• 1 Rig Set 3 outrigger rigs (lateral bracing)
• 1 Rig Set 3 tower rigs (carrying brace) for versions 5.01 m (16.44 ft) / 6.56 m (21.52 ft) / 8.11 m (26.61 ft)
• 1 Screw Set M6 segment screws 15 pcs. + 3 spare screws
• 1 Manual
