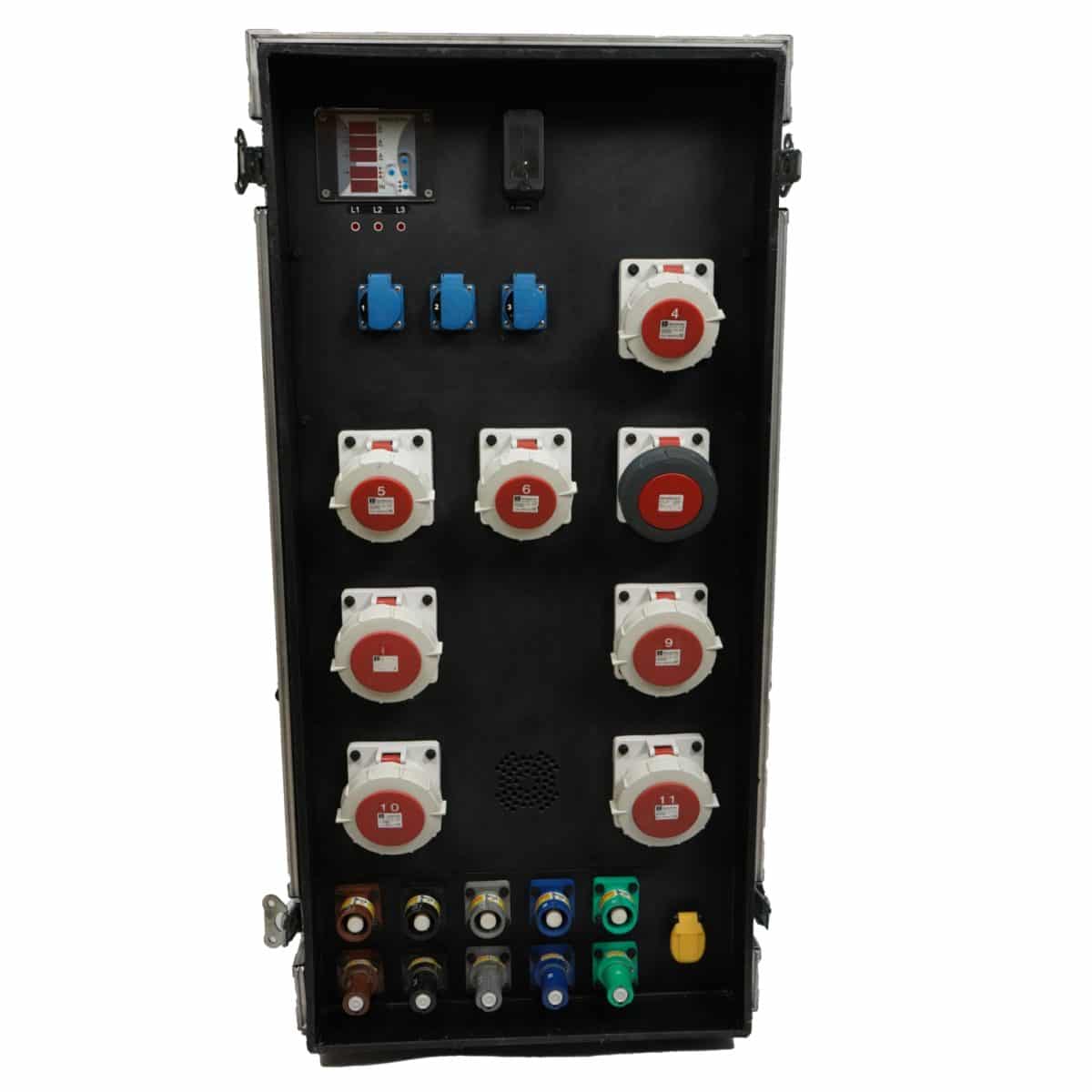

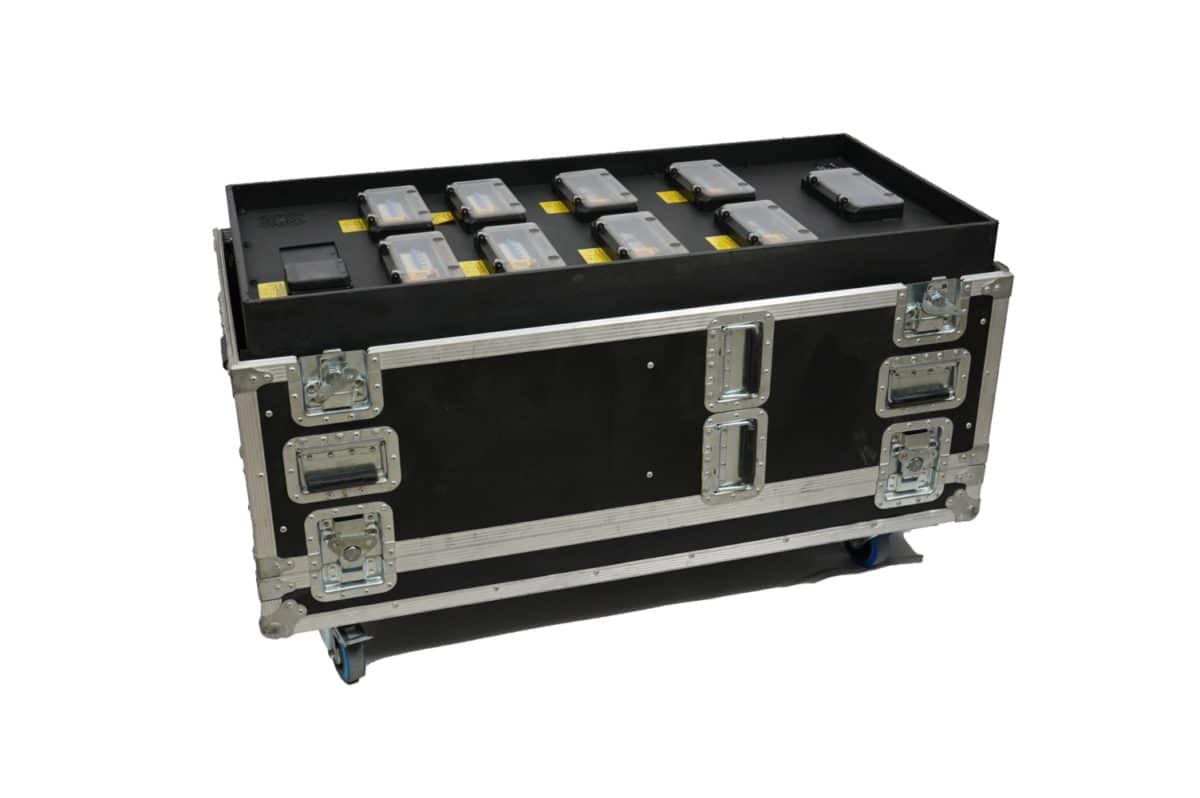

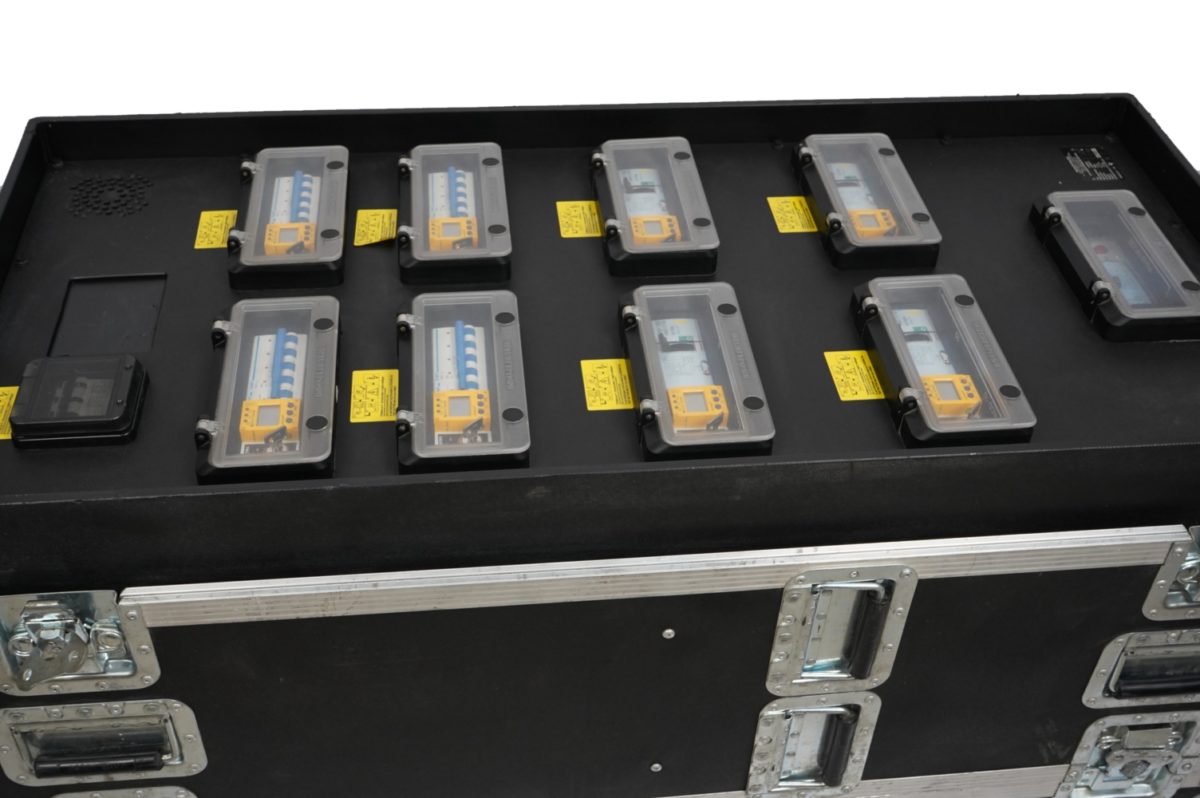

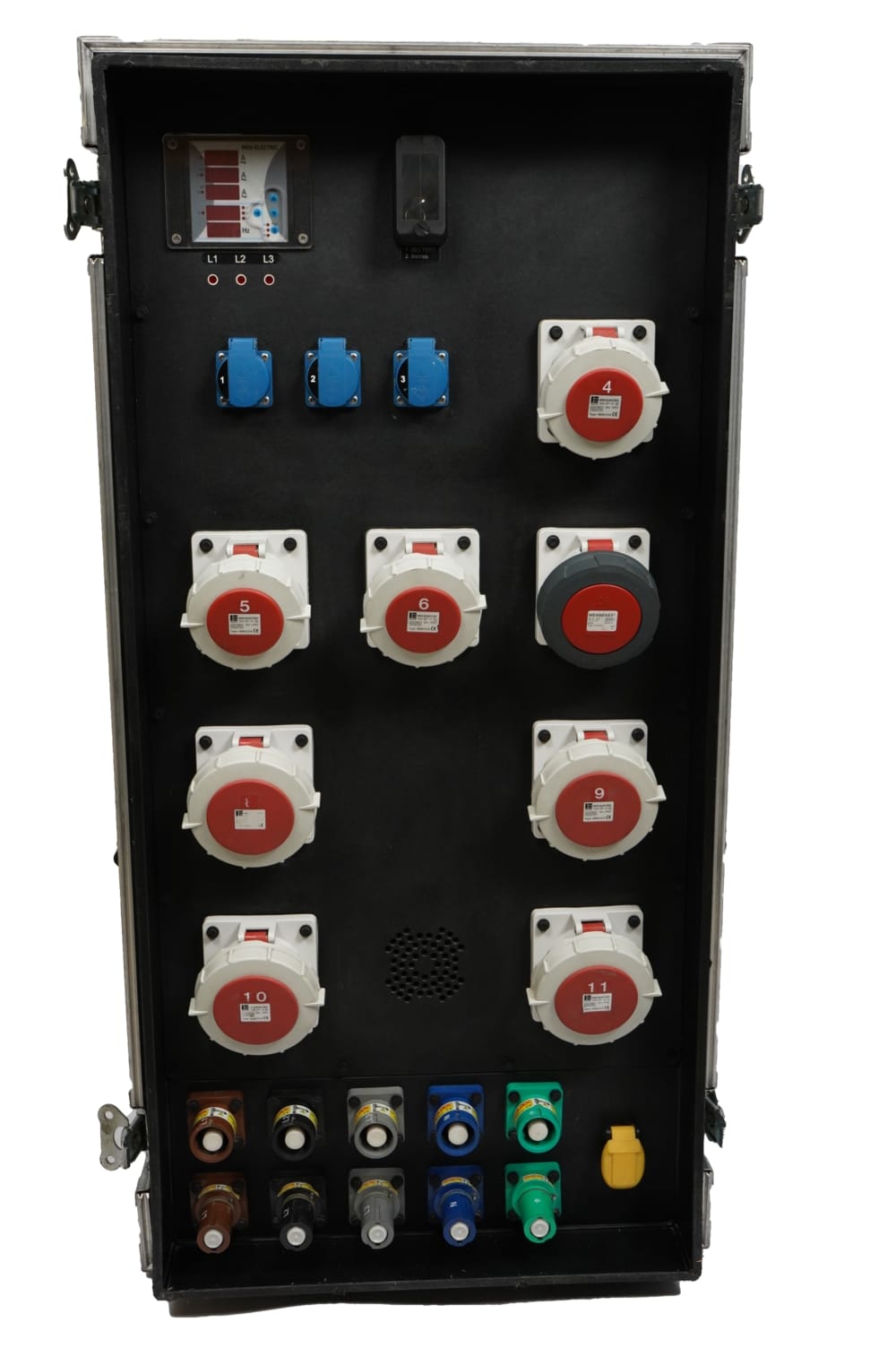

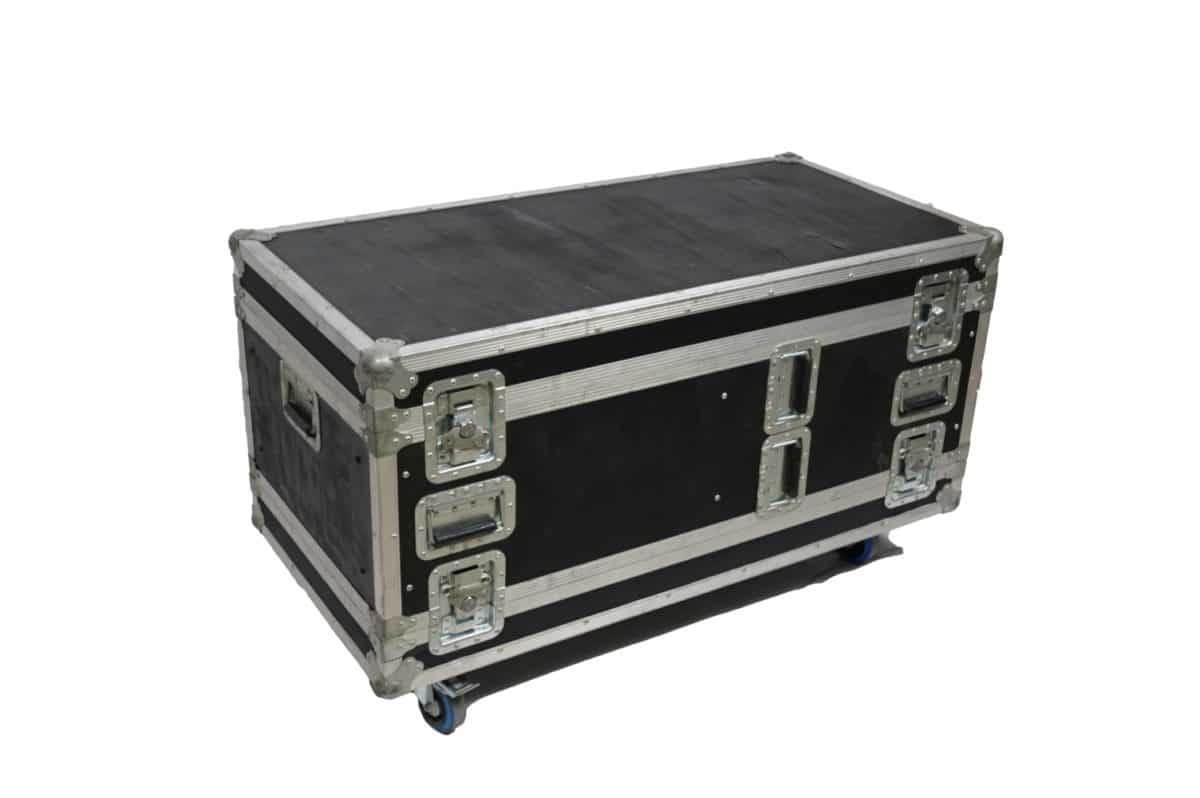

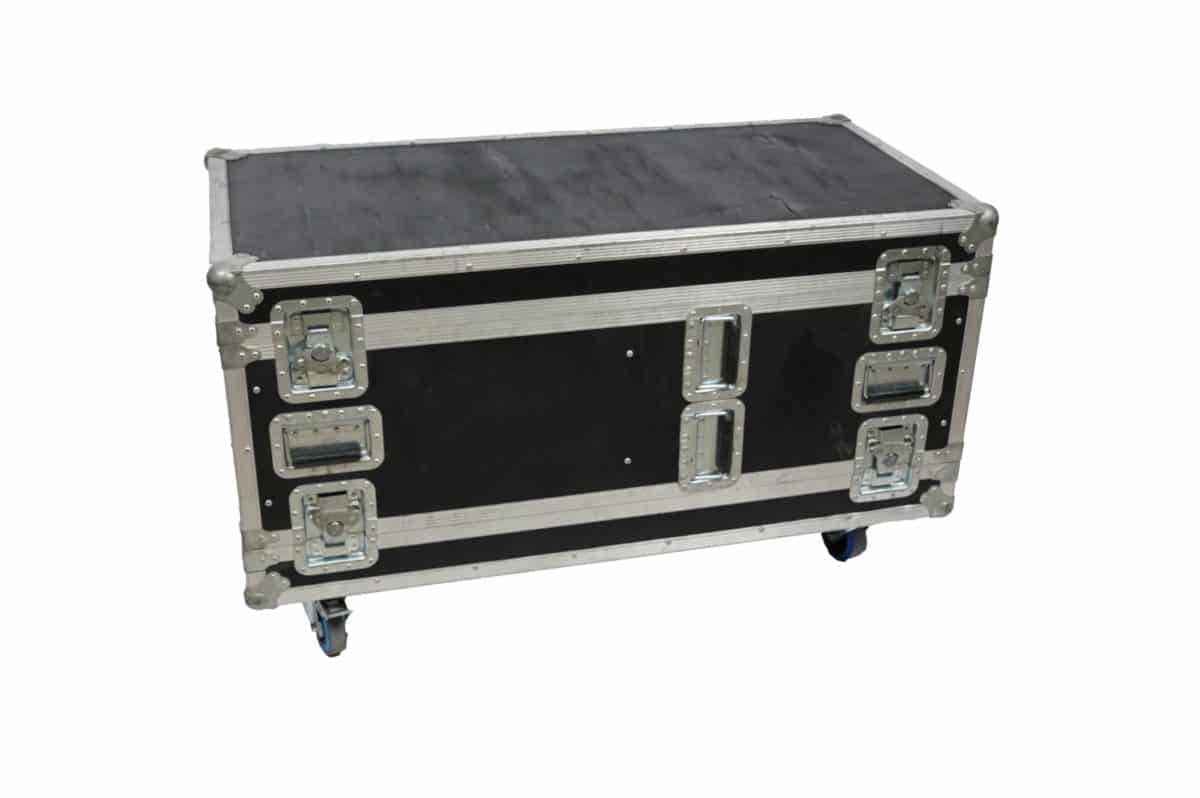

Distribution box 400A flightcase with wheels

Input:

• Powerlock 3P+N+PE

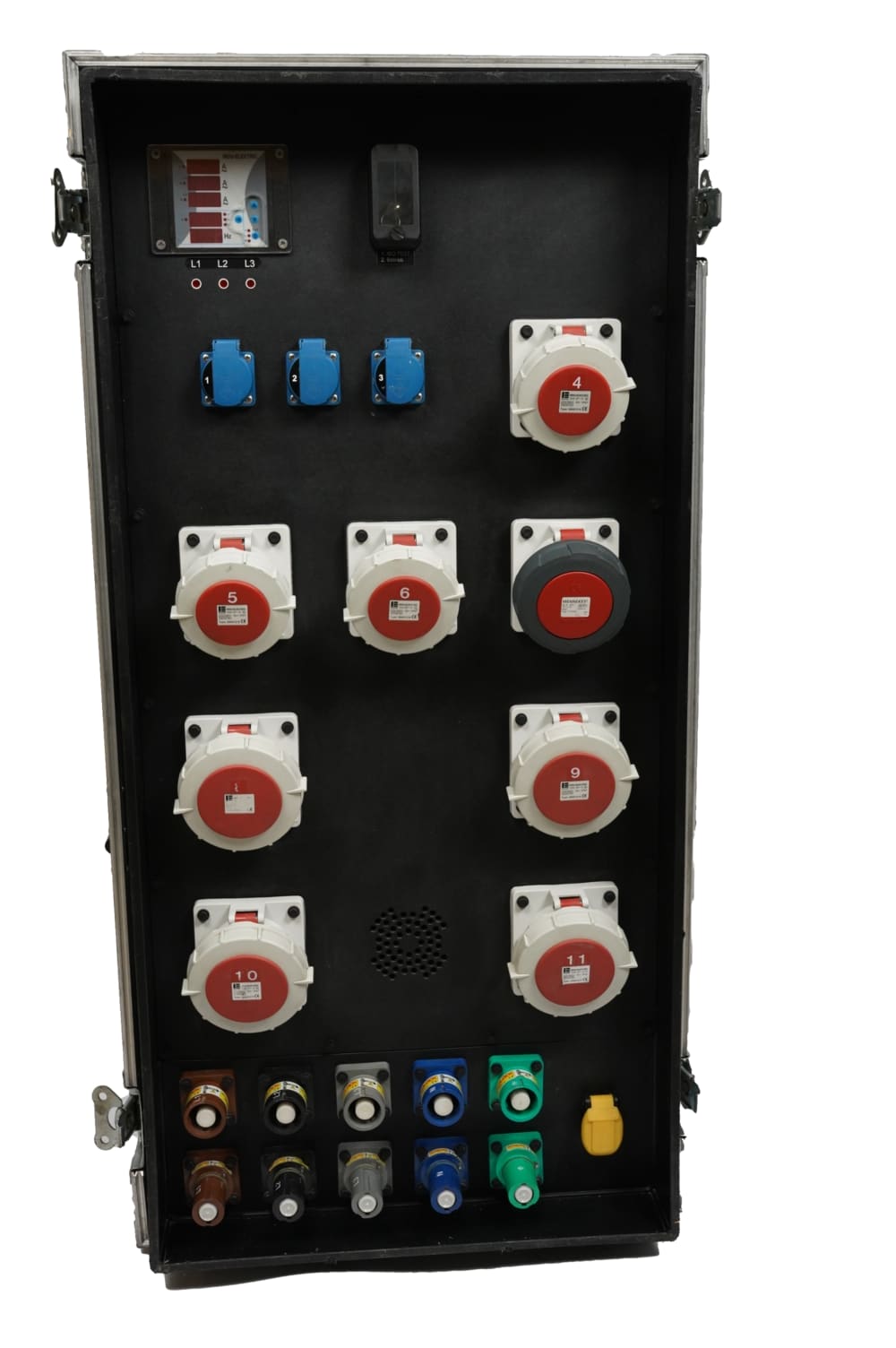

Output

• 4x CEE 125A 400V 5P
• 4x CEE 63A 400V 5P
• 3x Schuko
• – Powerlock 3P+N+PE

Extra

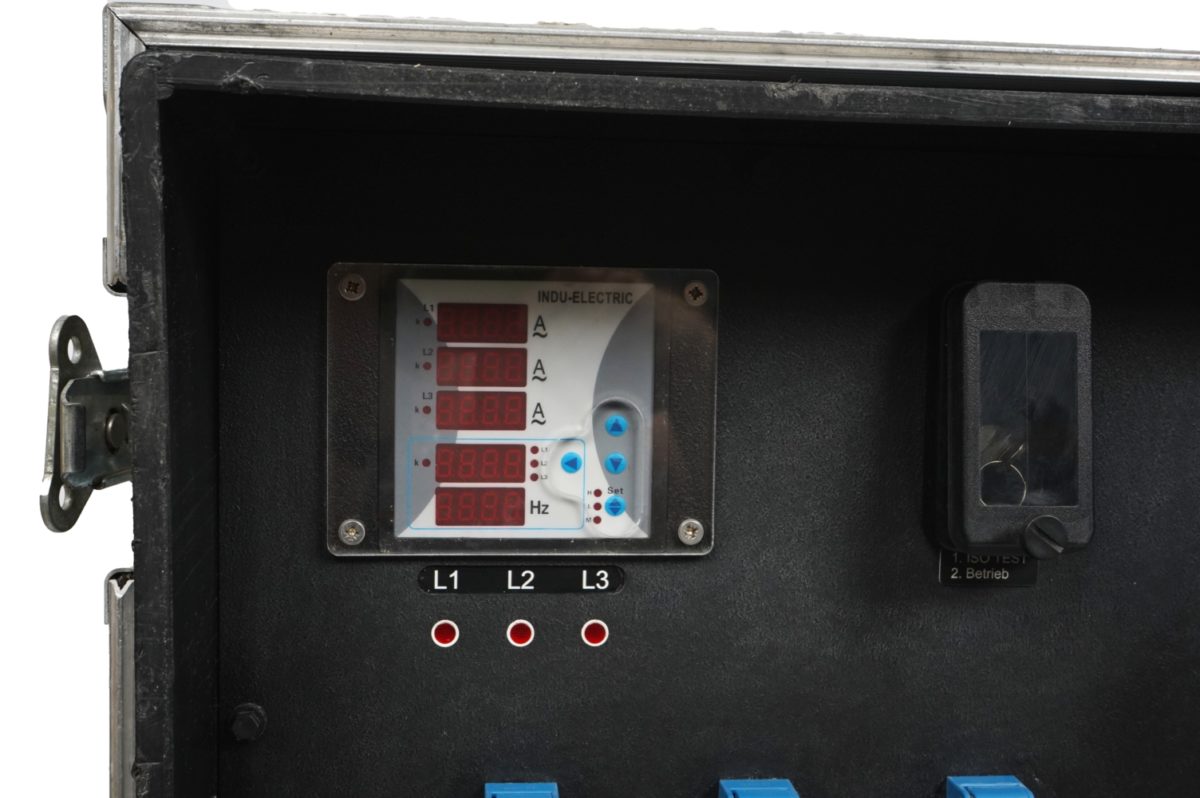

• 1x digital ampermeter, 1x earth stud
• The AC and pulsed DC sensitive residual current monitor

Note:

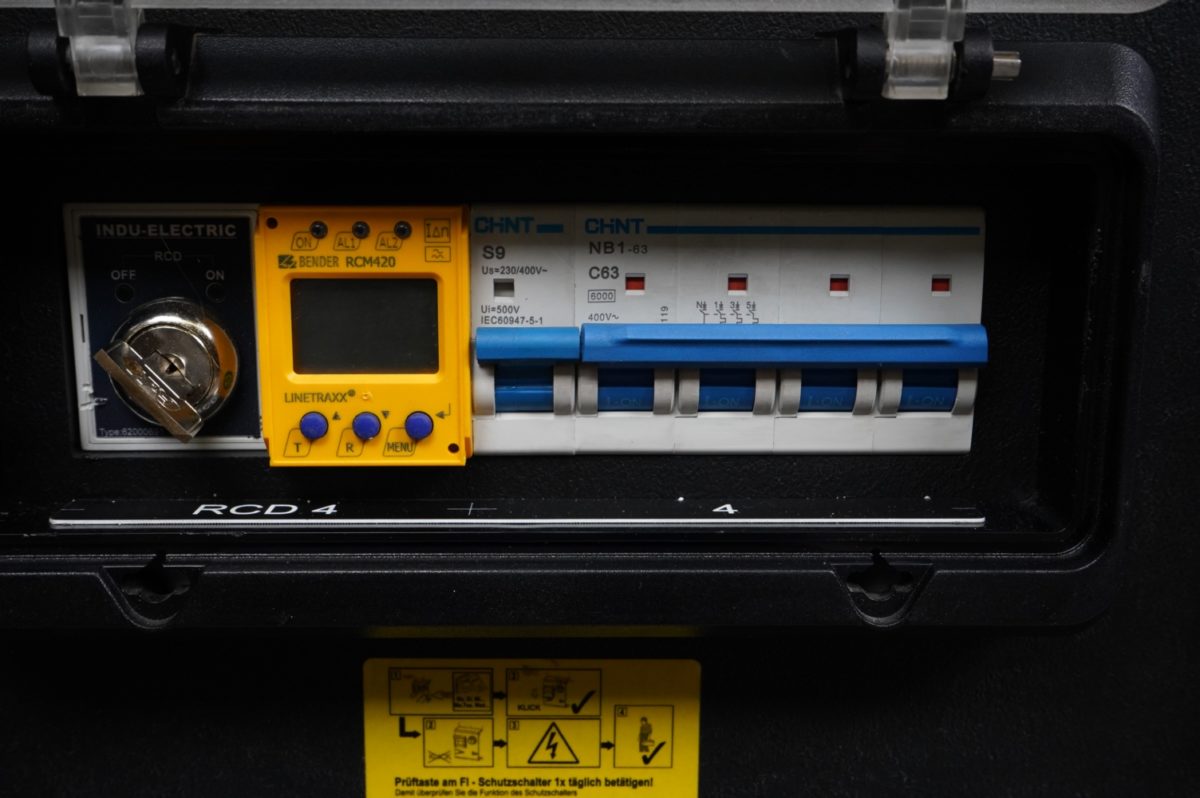

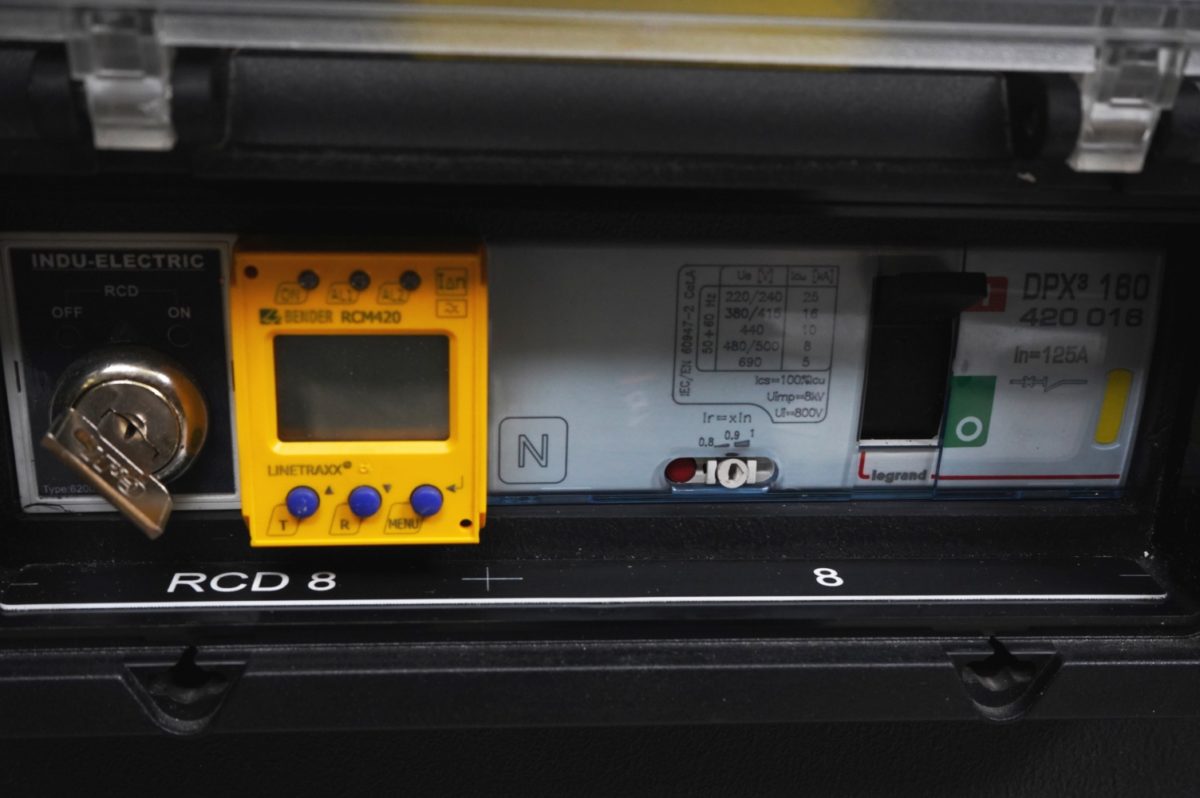

LINETRAXX® RCM420

The AC and pulsed DC sensitive residual current monitor RCM420-D (Type A) from Bender is designed for fault and residual current monitoring in earthed power supply systems (TN and TT systems) where an alarm is to be activated in the event of a fault, but disconnection must be prevented. In addition, the device can be used to monitor single conductors, such as PE conductors, N-PE connections and PE-PAS connections.

The prewarning stage (50…100 % of the set response value I_Δn2) allow to distinguish between prewarning and alarm. Since the values are measured with measuring current transformers, the device is nearly independent of the load current and the nominal voltage of the system.
