This cmotion cvolution 3 axis control kit has only been used for demo purposes and is in like new condition. As the cvolution system is using the same RF module as ARRI, it is also compatible with all ARRI cameras, which have integrated RF-modules inbuilt, like ALEXA Plus and ALEXA Mini.
- cvolution 3 axis control kit
- Advanced focus knob with torque adjustment, internal back lit illumination, mechanical limits and lock
- Iris slider
- Removable zoom control
- Equipped with ARRI White RF means hand unit is compatible with ARRI White cameras and UMC-4

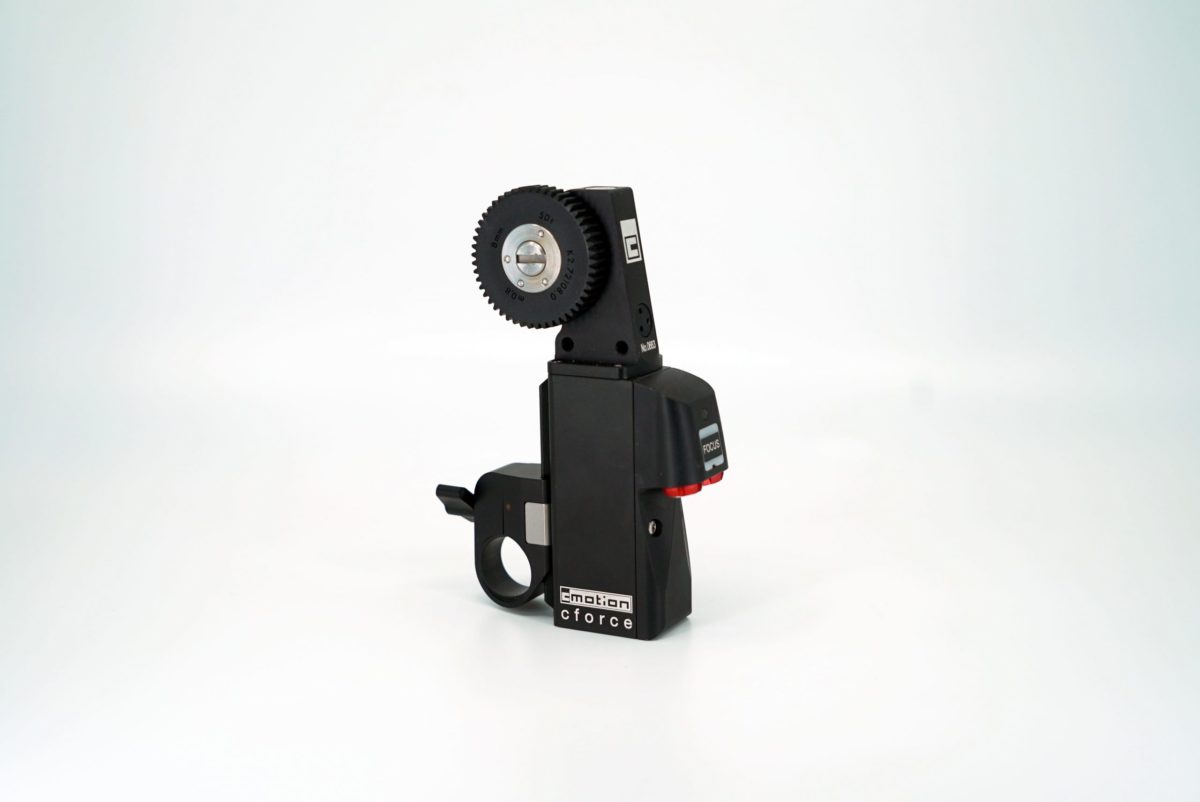

- Includes 3 cforce basic motors (NOT mini/plus)
- Can control up to 6 motors
- Incudes ARRI UDM-1 kit for distance information and autofocus
Package consists of:
| Qty |
Component
|
Description
|
| 1 | cvolution main-unit white with external antenna | cvolution main hand unit with external antenna and Arri White |
| 1 | cvolution slider | slider to control one motor (C0E4-K02 or C0E4-K05 needed) |
| 1 | zoom main unit | zoom main unit for cvolution system |
| 1 | cvolution handle | handle for zoom unit C0E5-K01 |
| 1 | zoom mount for hand unit with CBUS | zoom mount for cvolution hand unit with CBUS |
| 1 | cvolution knob-adv | advanced knob to control one motor (C0E4-K02 or C0E4-K05 needed) – features: marker light, torque adjustment |
| 3 | cforce basic set | Controlled Lens Motor cforce basic set including: cforce Motor Unit-C0J5-K11, CLM-4 Standard Clamp Console 19/15mm-K2.72101.0, 1 x CLM-4 Gear Carrier, Gears: 0.4, 0.5, 0.6, 0.8 |
| 1 | cvolution camin 3M ARRI white / L | camera interface unit for 3 motors, Arri White; Lemo motor-connectors |
| 1 | ARRI Ultrasonic Distance Measure UDM-1 Set | incl. UDM Sensor Unit (K2.65130.0), UDM Display Unit (K2.65131.0) and cable UDM-Sensor 1,5m 5′, (K2.0006459) |
| 1 | cable CDM-1 | CBUS ARRI UDM (Le m8p, Le m4p) 0,8m (2′ 7) |
| 1 | cdistance | ultra bright display for distance visualization (ARRI Ident Nr. K2.0015667) |
| 1 | cfast rod extender | 19mm rod extender with one cmotion rosette |
| 1 | CLM-5 / cforce mini / cPRO motor Clamp Console 19/15 mm | Including: CLM-5/cforce mini Clamp Insert 19/15 mm (K2.0006175) |
| 1 | cfast rod connector | rod connector for 19mm rods and adapter for 15mm rods (cmotion rosette) |
| 1 | cfast-vlock rosette | cfast-vlock including a cmotion rosette and screw |
| 1 | cfastener | universal clamp for rods from 15-28mm with 1⁄4’’ thread |
| 1 | cstrap | universal 1⁄4’’ retainer neck strap (ARRI Ident Nr. K2.0019831) |
| 1 | marker ring for cvolution and compact | marker ring for cvolution knob basic and advanced, compact knob and knob solo basic and advanced |
| 1 | cable LCB-1 | LBUS cable (Le 4p, Le 4p) 0,8 m (Cmotion Idend Nr.C0JE-K01 ) |
| 1 | cable CCB-2 | CBUS cable (Le 8p, Le 8p) 6m (19′ 8) |
| 1 | cable LCB-7 | LBUS / CBUS cable (Le 4p, Le 8p) 0,8 m |
| 1 | cable CCB-1 | CBUS cable (Le 8p, Le 8p) 0,8m (2′ 7) |
| 1 | cable RRS-7 | RS cable (Fi f3p, AntB 2p) 0,8m (2′ 7) |
| 1 | cable LCB-D-180° C0JE-K0D-180° | 50.00 |
| 1 | Power supply | power supply (input 110-240V/50-60Hz; output 24V, 3,75A) with Fi f3p connector |
| 2 | cable LCB-3 | LBUS cable (Le 4p, Le 4p) 0,2m (Cmotion Ident Nr. C0JE-K03) |
| 2 | cable LCB-4 | LBUS cable (Le 4p, Le 4p) 0,3m (Cmotion Ident Nr. C0JE-K04 ) |
| 2 | battery | battery, 2400mAh, 7.2V, for all cvolution and compact hand units |
| 1 | battery charger | battery charger for C01B-K01 |
| 1 | cmotion travel case | travel case with interior for cPRO LCS / compact LCS & accessories (ARRI Ident Nr.K2.0019840) |
Similar Systems avaible. Please contact us when you are looking for a similar smaller package.
