• ›  Install 2x Gold mount batteries
• ›  4pin Regulated 24V out, Max 240W
• ›  3pin Regulated 48V out, Max 500W
• ›  500W by SWIT Bi-voltage batteries
• ›  For Skypanel S60/S120 100% output
• ›  Neutrik XLR connectors
• ›  25-45mm light stand install

For High Power Cine Lights

By 2 Batteries, Regulated 24V/48V out

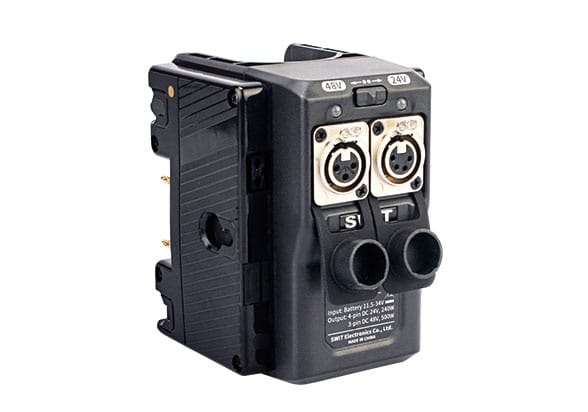

The high power lights usually use 24V or even 48V high voltage input. And TD-R210A is a solution to drive these high power lights with only 2x Gold mount batteries, outputs regulated 24V or 48V, high load, portable and easily to be mounted on C-stand.

Output Description

Max 48V 500W Load

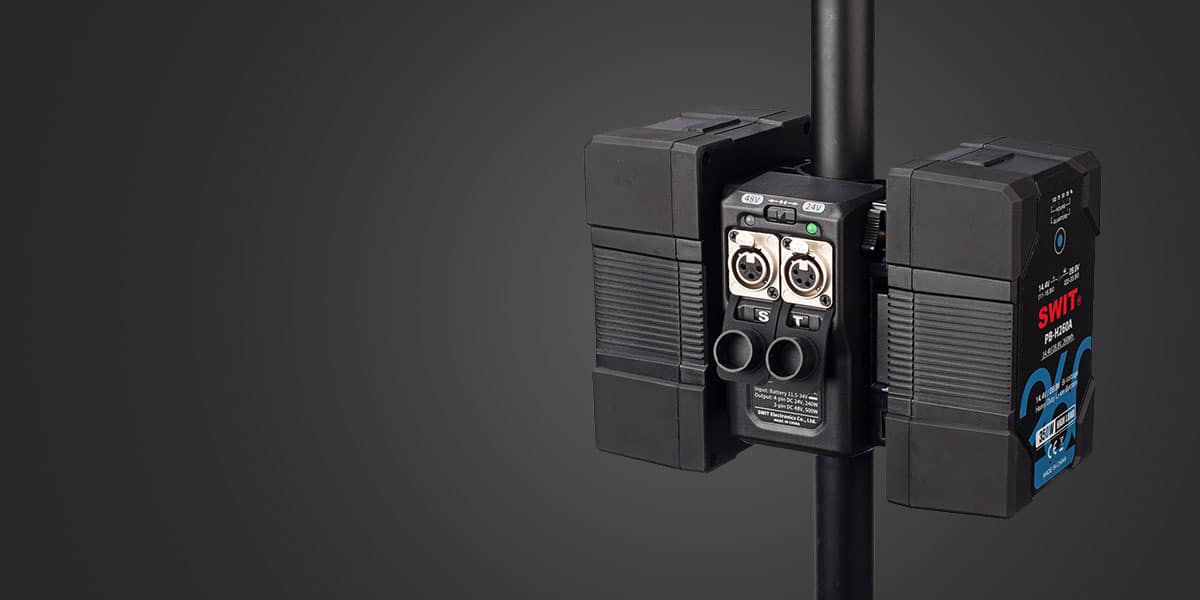

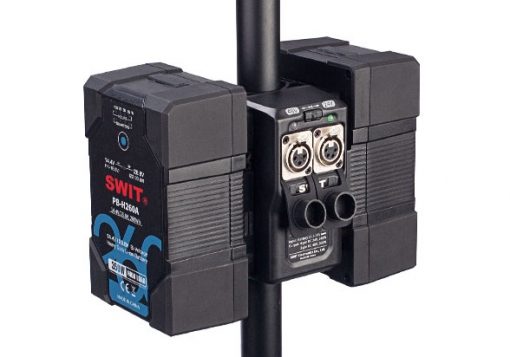

Installed with 2x Gold mount batteries, the TD-R210A can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Orbiter, Skypanel S60-C / S120-C 100% light output.

Output Description

Max 48V 500W Load

Installed with 2x Gold mount batteries, the TD-R210A can output 4pin XLR regulated 24V or 3pin XLR regulated 48V DC power. By normal 14.4V batteries, the Max load is 240W; By SWIT 14.4V/28.8V Bi-voltage batteries, the Max load under 48V can reach 500W, to support high power lights like ARRI Orbiter, Skypanel S60-C / S120-C 100% light output.

Compact & Balanced

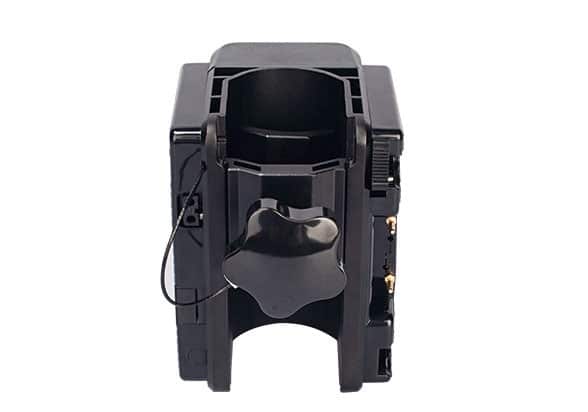

25-45mm diameter light stand install

TD-R210A has extremely compact size without fans, and fits on 25mm-45mm diameter light stand – all most all stands. It’s balanced with 2 batteries and reliable locker.

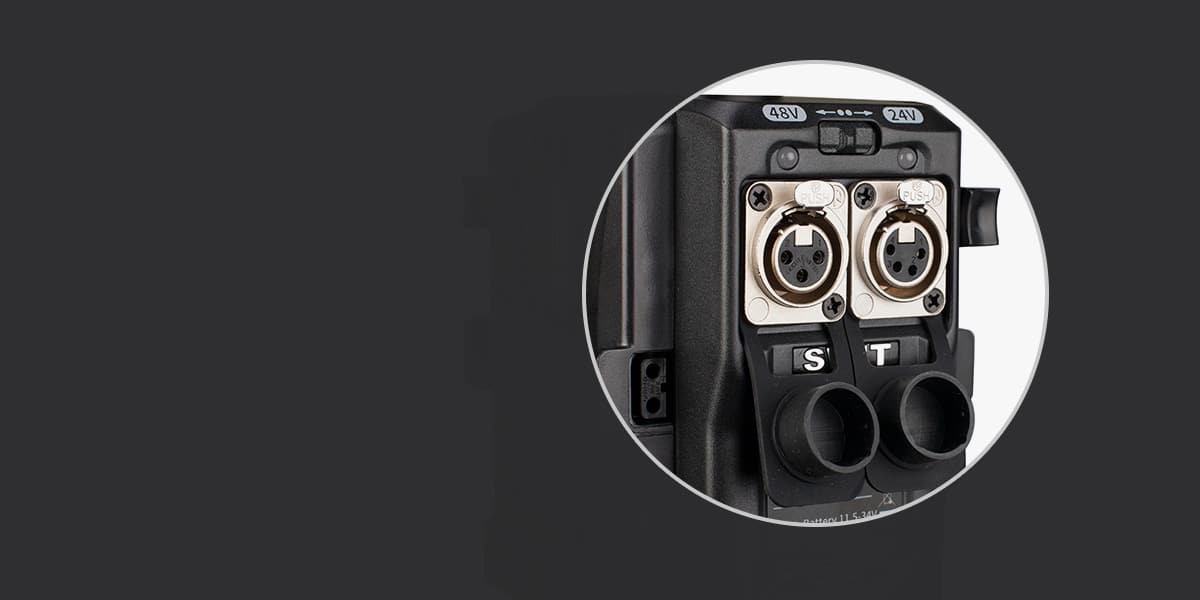

Neutrik XLR Socket

To ensure stable high current output, the TD-R210A adaptor uses Neutrik 3-pin & 4-pin XLR sockets, reliable and safe.
