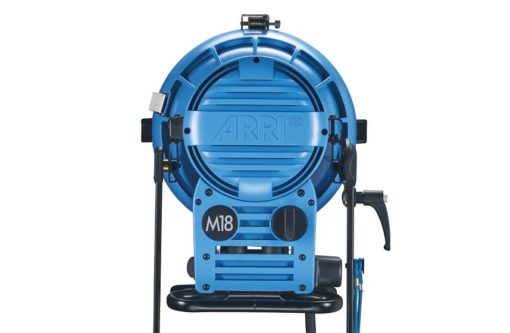

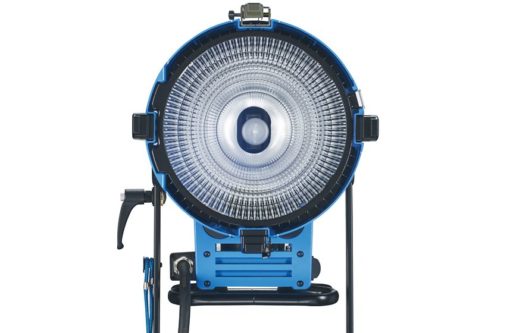

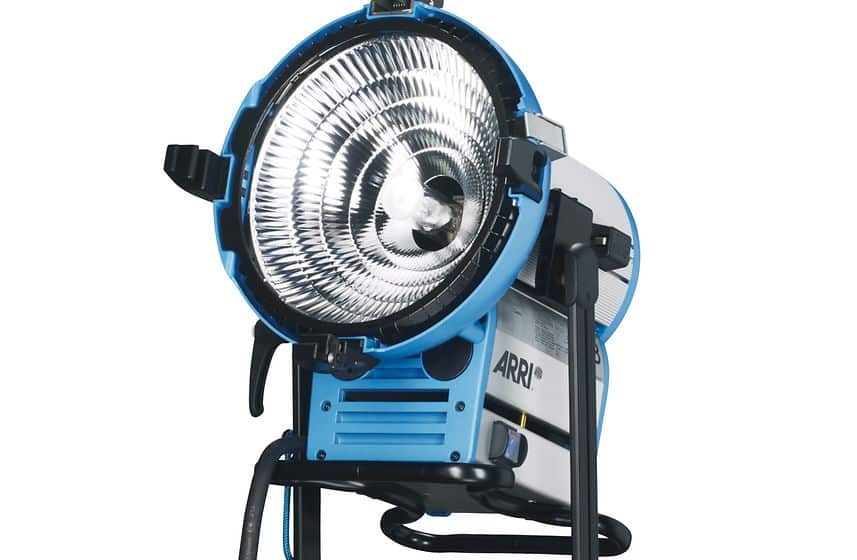

The M18 combines MAX Technology, True Blue features and a new 1800 W lamp. The result is an exciting new class of HMI that can be powered from most domestic sockets. It is as small as a 1200 W PAR lamphead but with 70% higher light output. Adjustable from 20° to 60° beam angle, the M18 can also be used with 1200 W lamps.

• Lens-less MAX Technology: Easy to use• New 1800 W lamp

• Virtually the same size as a 1200 W lamphead but more than 70 % brighter

• Runs from most domestic sockets world-wide

• Uses existing 575/1200/1800 W cables

• Can also be used with 1200 W lamps and ballasts

• Cross Cooling allows safe operation at any tilt angle

• Protection class IP 23

• TRUE BLUE tilt lock holds even heavy Chimeras

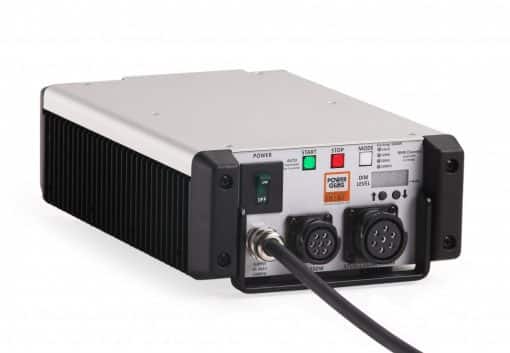

• Easy maintenance1800W Electronic BallastEB180P

This 1800W ballast can operate up to 4 different lamp powers, and works on worldwide mains supply voltages making it a very flexible piece of kit to have available.Bearing the TÜV quality label, it has Power Factor Correction which minimises current draw and enables an 1800W lamp to be powered from a US 20A circuit.The product is made using the Power Gems unique power module, which can even be interchanged with with modules from our 4kW or 6kW modelsProduct Features:• Power Factor CorrectionTUV Rheinland logo• High Speed option as standard• DMX control• Modular Power Circuit

ARRI M18 set Package Contents

• 1x L1.37600.B M18, blue/silver
• 1x EB180P High Speed 1800W incl. 1000Hz Electronic Ballast
• 1x Head-to-Ballast cable 575/800/1200/1800 W, 7 m,International connector (VEAM)
• 1x L2.40950.0 4-leaf barndoor (344 mm / 13.5″)
• 1 x L2.37670.0 Spillring (330 mm / 13″)

PRODUCT SPECIFICATION EB180P High Speed ballast 1800W incl. 1000Hz:

• Max Lamp Power    1800W
• Output Power Options    1.8kW, 1.2kW, 800W, 575W
• Output Frequency Options    1000Hz, 300Hz, 100Hz, Silent Mode
• Input Voltage Range    95-265V AC
• Current Draw    8.7A@230V, 16.7A@120V
• Power Factor    >0.98
• DMX Built In    Yes
• Max Ambient Temperature    45°C/113°F
• Width    225mm/8.9″
• Height    115mm/4.5″
• Length    350mm/13.8″
• Weight    7.5kg/16.6lb
