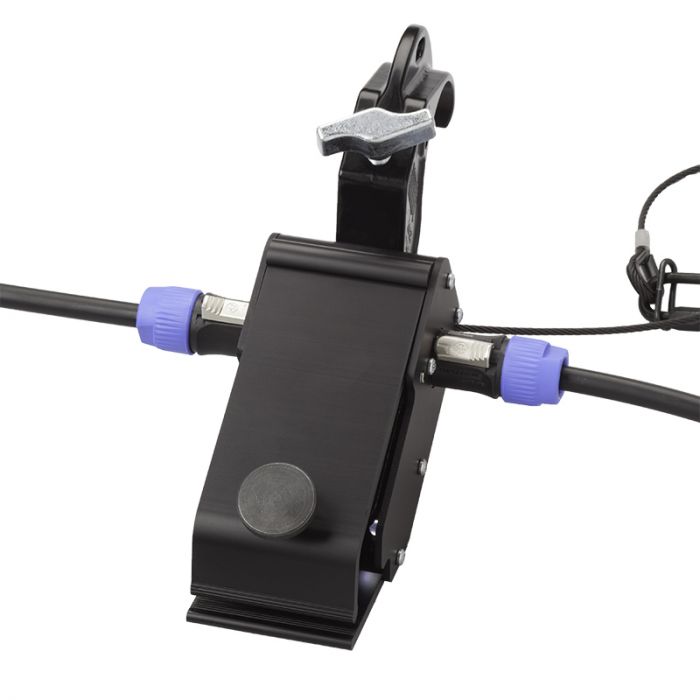

KABUKLIP – KABUKI RELEASE UNIT (IP54)
for the dropping of fabrics and curtains for outdoor use (IP54).
KabuKlip – the unique Kabuki curtain drop system in splash-proof design for outdoor use.

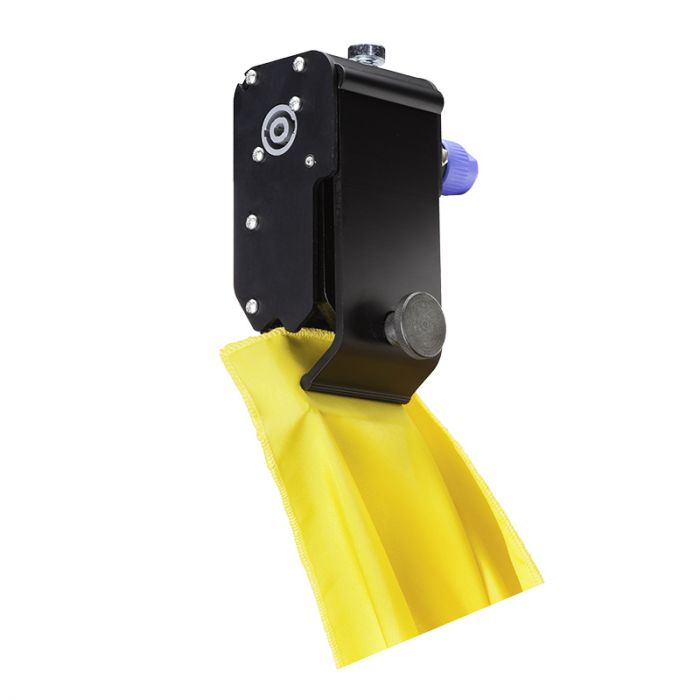

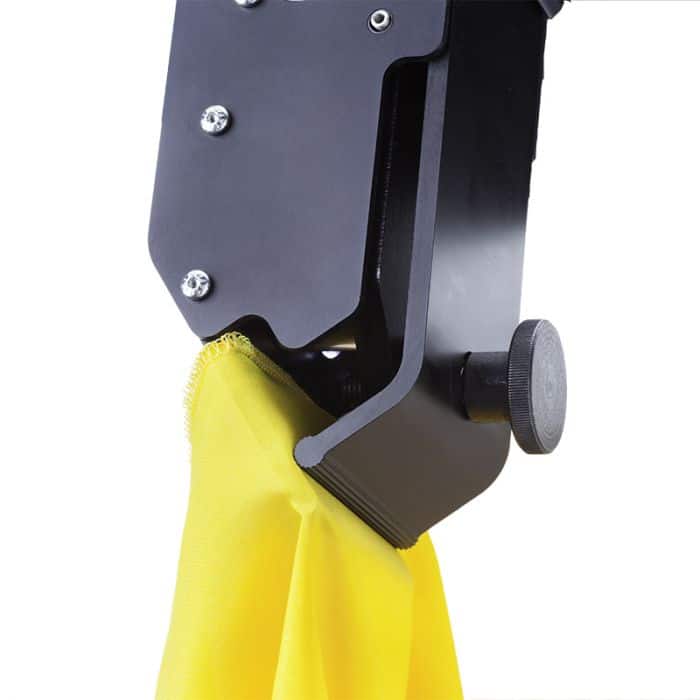

The KabuKlip release unit holds curtains, fabrics or films without eyelets or any edge processing either by pure terminals or positive connection.
The application without metal inserts such as eyelets, rings or hooks leads to a natural and light dropping of the Kabuki curtains. In addition, possible injury scenarios are eliminated.

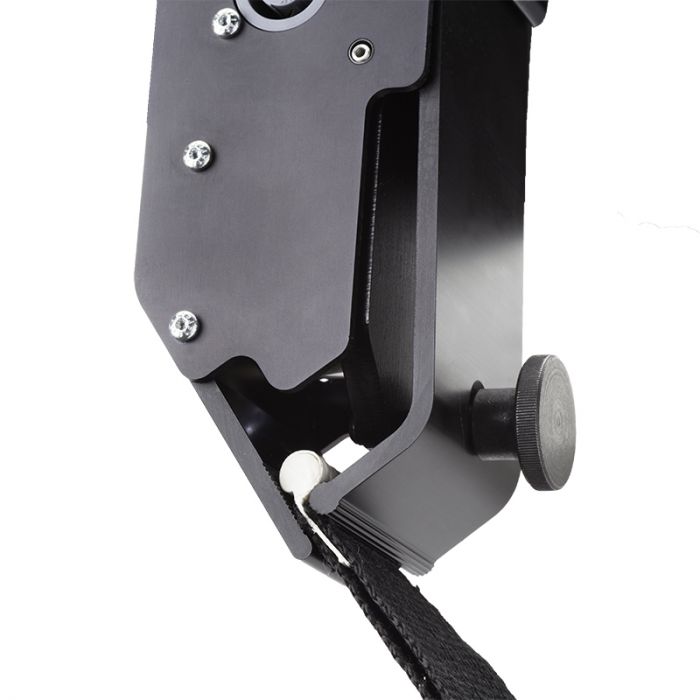

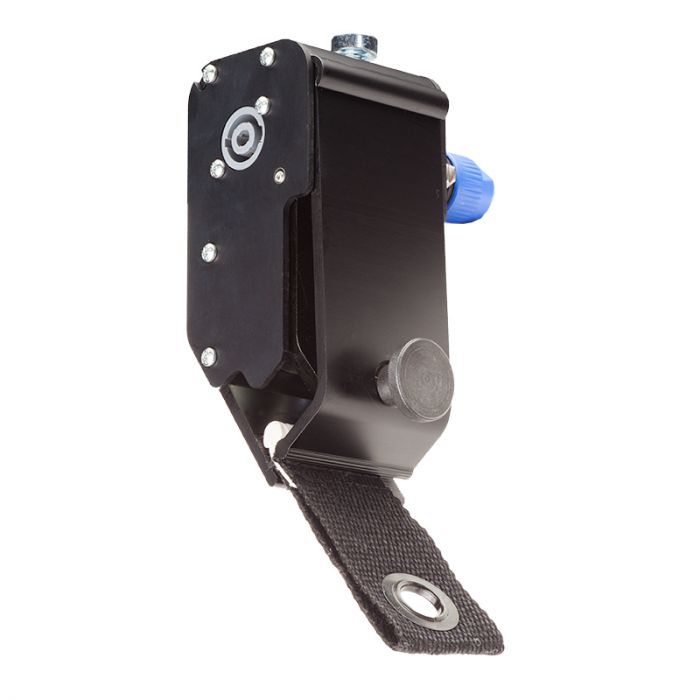

The release eyelet is used for the release of heavy materials.
The KabuKlip release units always open reliably at exactly the right point in time.

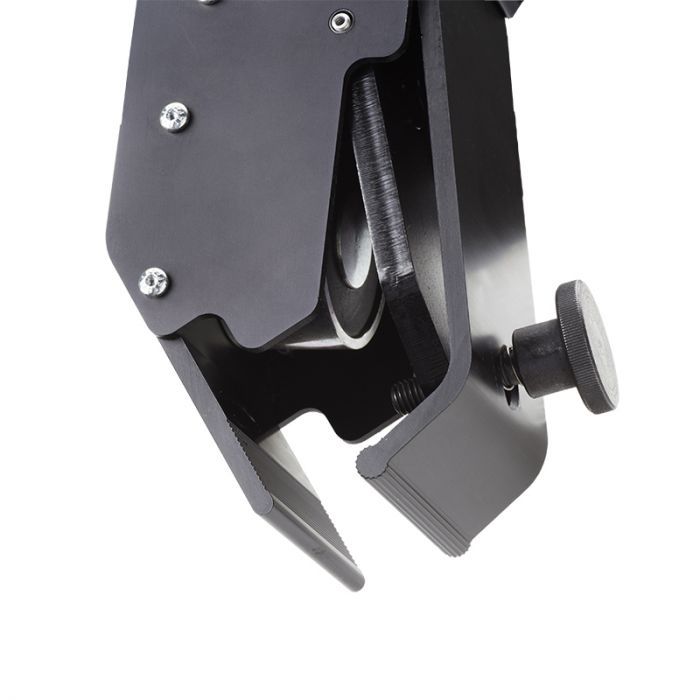

Mechanical jamming is excluded by design!
Scope of delivery:

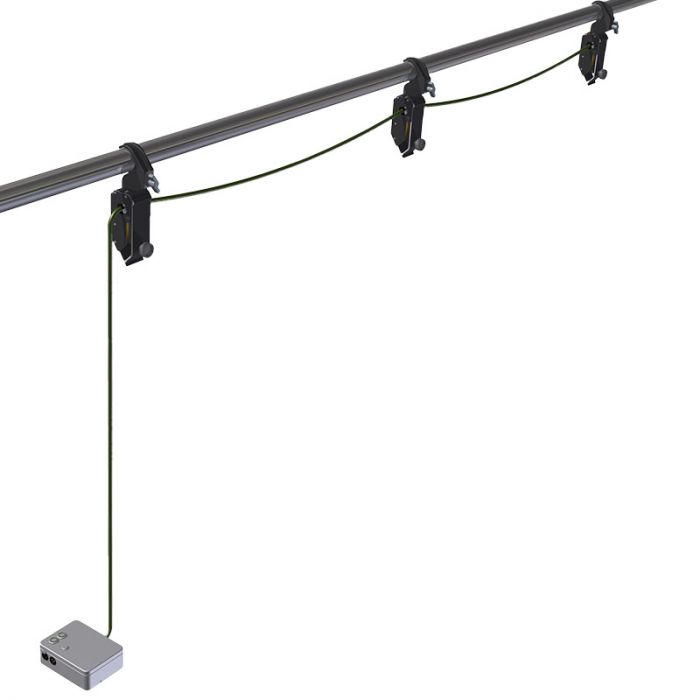

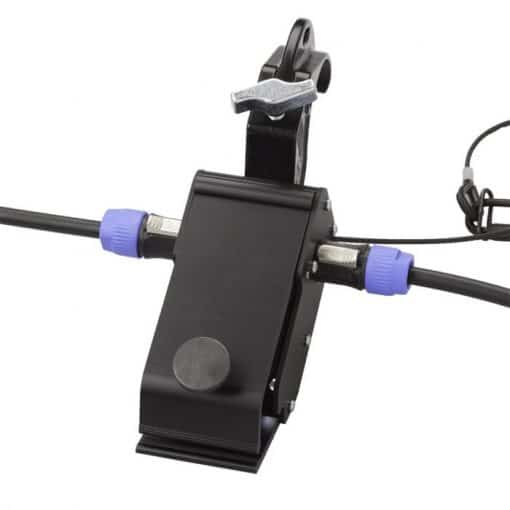

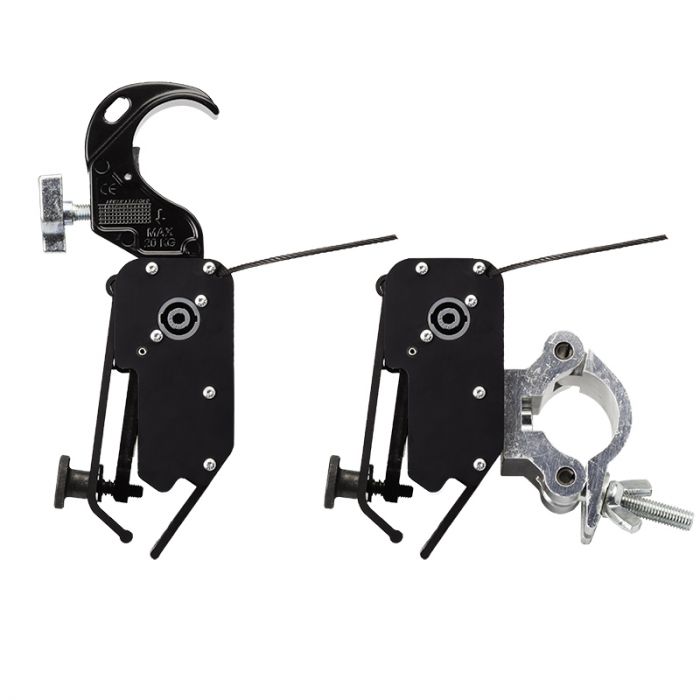

KabuKlip carrier unit with two integrated M12 threads for attachment of standard halfcouplers or hook clamps
M12 hexagon socket head cap screw with snap ring and shim

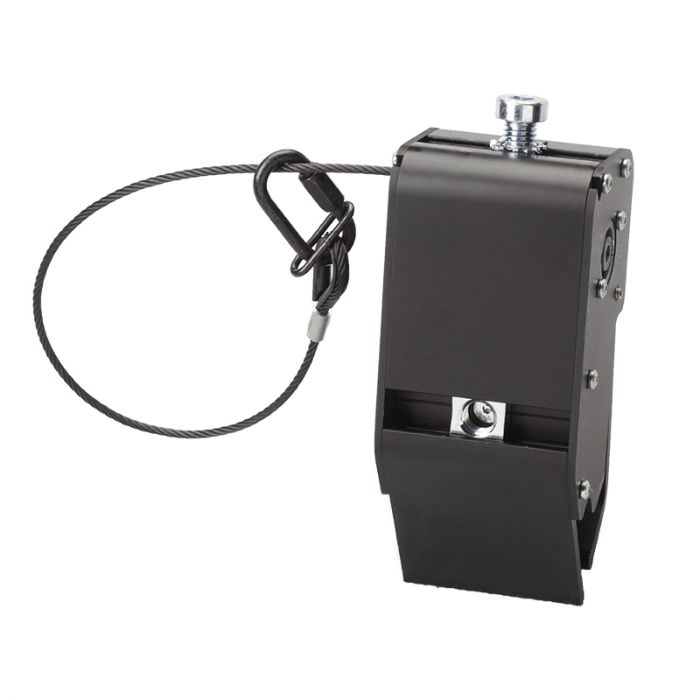

Steel safety 3mm
Inboard, separately switchable operating LED.
Operating mode: 24V-DC
Duty cycle: 100%
Protection: IP 54
Internal connections: 4-Pin Speakon _1.5mm
