SL50 3.5 Super Silent Generator 60 KVA

    Price on request

    thank you for your interest in theSL50 Super silent generator. The production of the SL50 Super silent generators has recently been discontinued. The reason we discontinued the production is that the it was not fulfilling the strict EU environment law anymore. As of the beginning of this year only STAGE 5 NORM engines are legal for new builds in Europe.

    We are currently working on a new hybrid system that will fulfil the STAGE 5 NORM and hope to have it ready by the beginning of 2020.

    Please use the form below to subscribe to updates about the new hybrid generator system.




      Category:

        SL50 3.5  Super Silent Generator 60 KVA

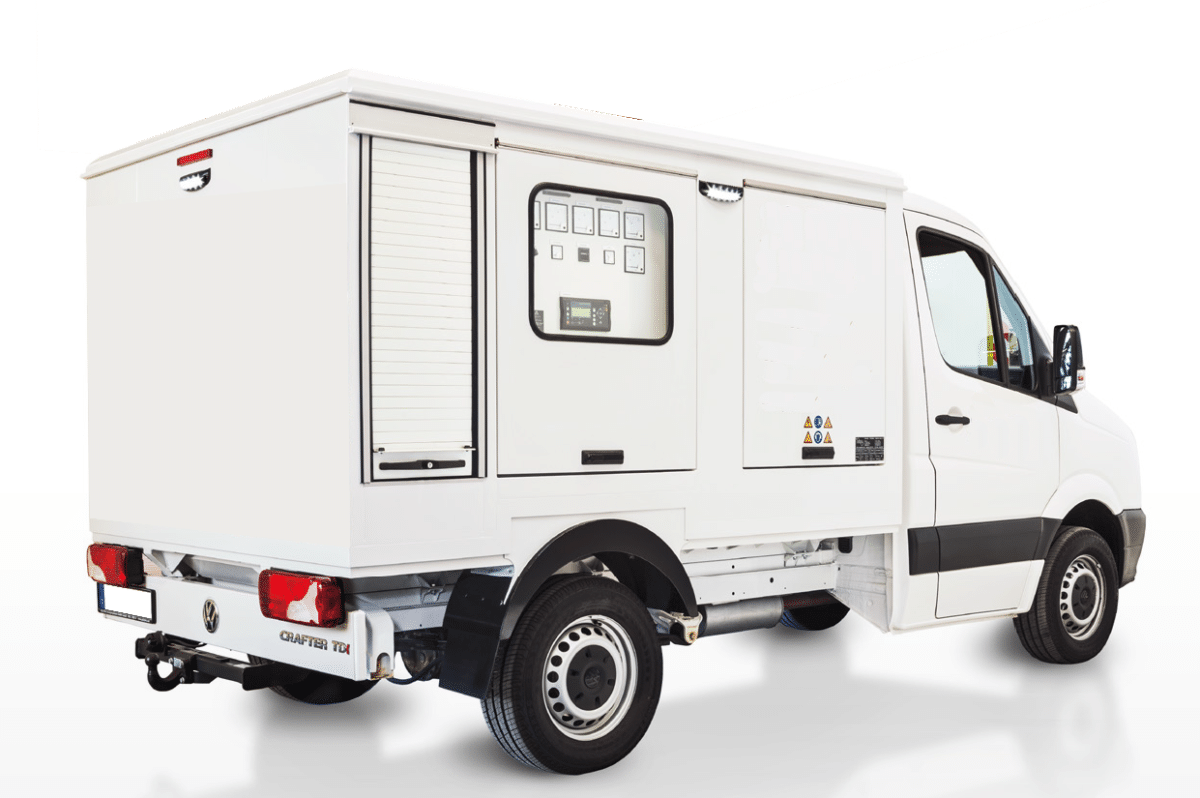

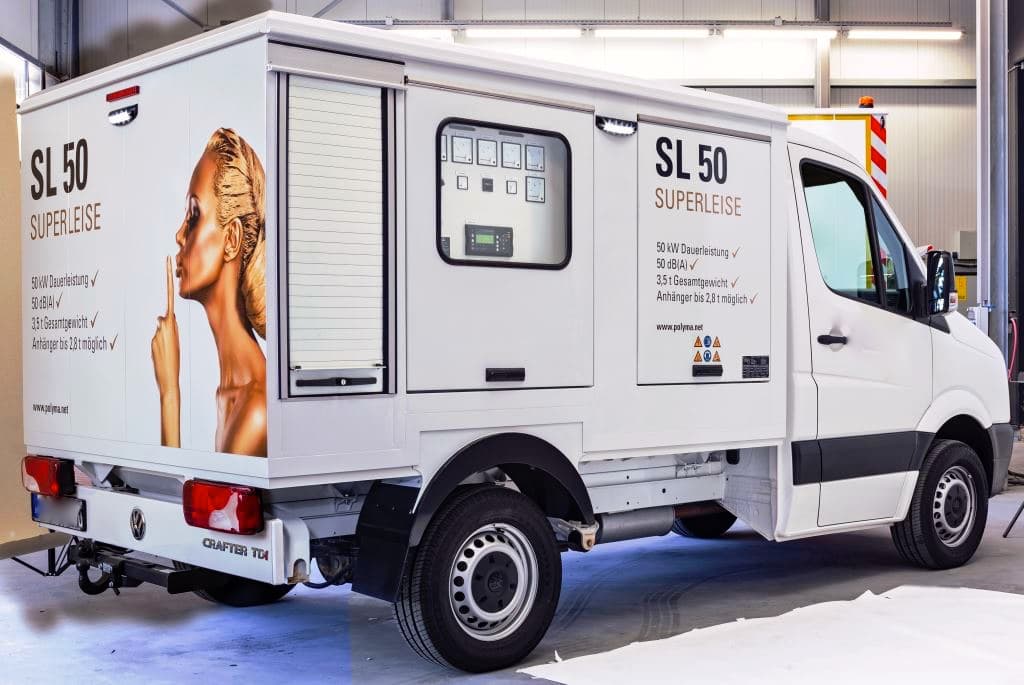

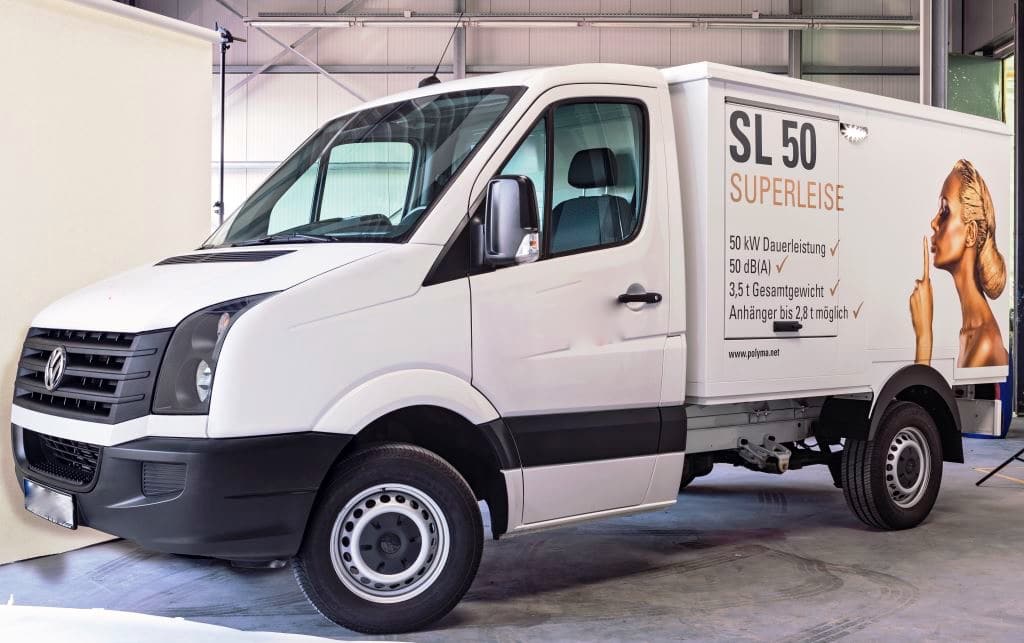

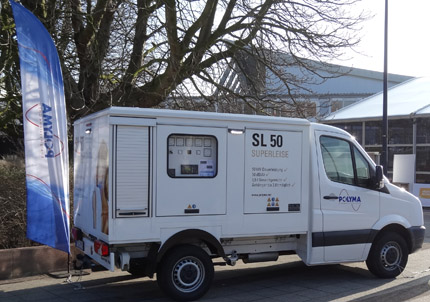

        SL50 3.5 (60kVA) super silent generator 60kVA on carrier vehicle super quiet unit with 50dB (A)
        Carrier vehicle:

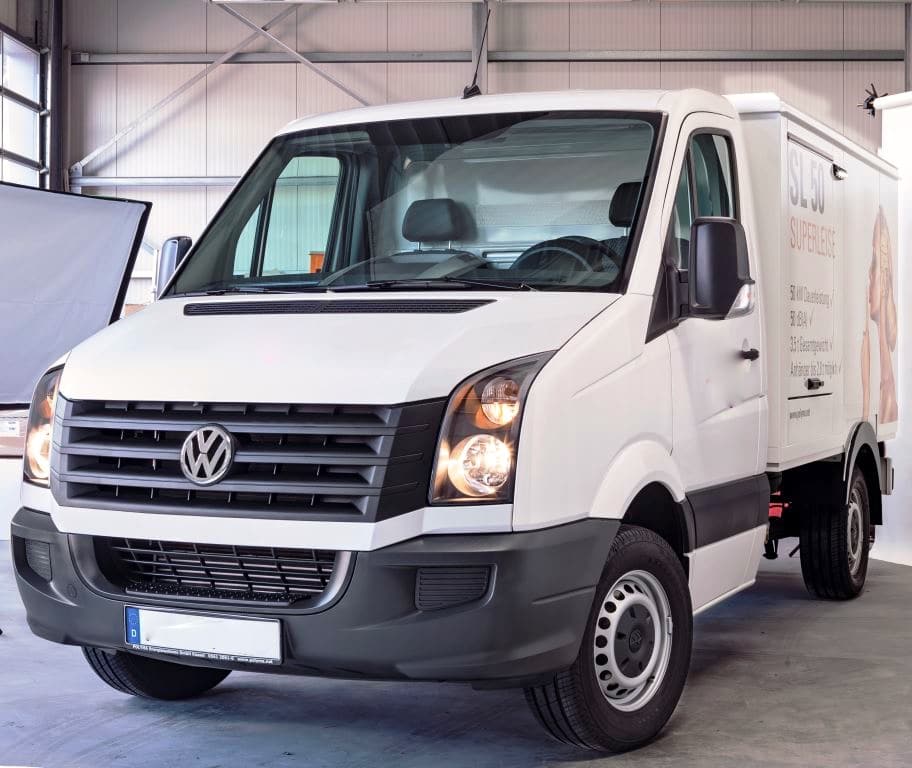

        Manufacturer: VW Crafter
        Single cab (2-seater) with 3.250mm wheelbase Total weight: 3,500 kg
        Engine: 2.0 l TDI with 6-speed manual gearbox
        At 120km / h
        Including radio and air conditioning
        Reinforced dampers (rear axle)
        Power generation:
        Engine: 4-cylinder DEUTZ, oil-cooled Generator: Leroy Somer
        Sound attenuation: 50 dB (A) at 75% load at 7 meters (idle approx. 46 dB (A))
        Tank volume: 140 l (for about 10 hours full load operation),
        Machine room easily accessible through large flap openings and gaps with quick-release closure
        Integrated with leakage sensors

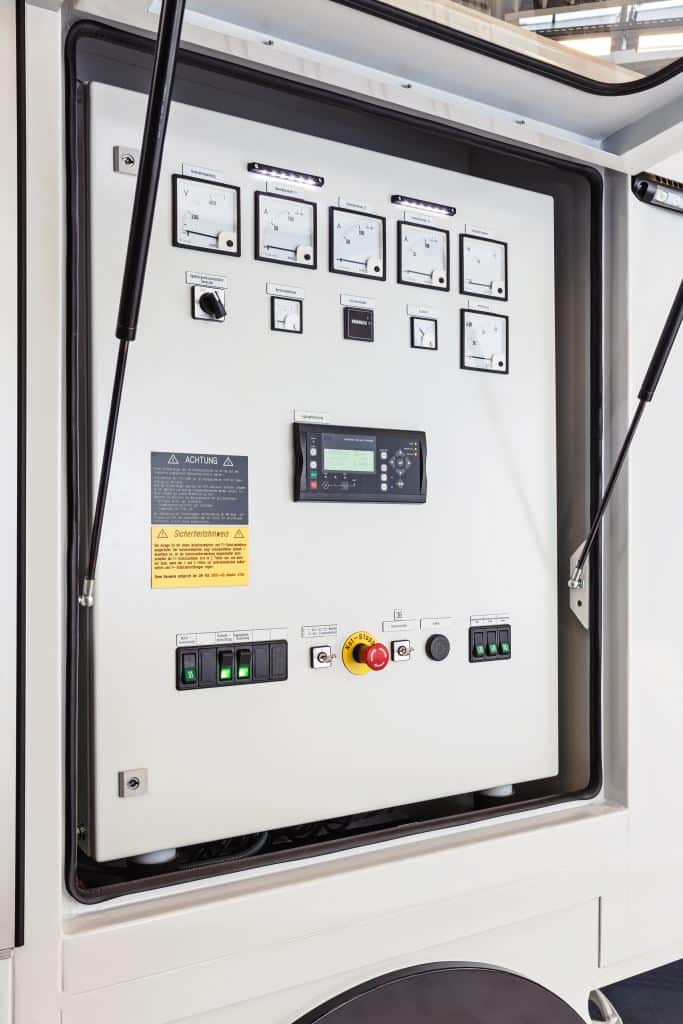

        Control cabinet separate from engine room sound insulation analogue displays: voltage meter, frequency meter, real power meter, operating hours counter, fuel gauge

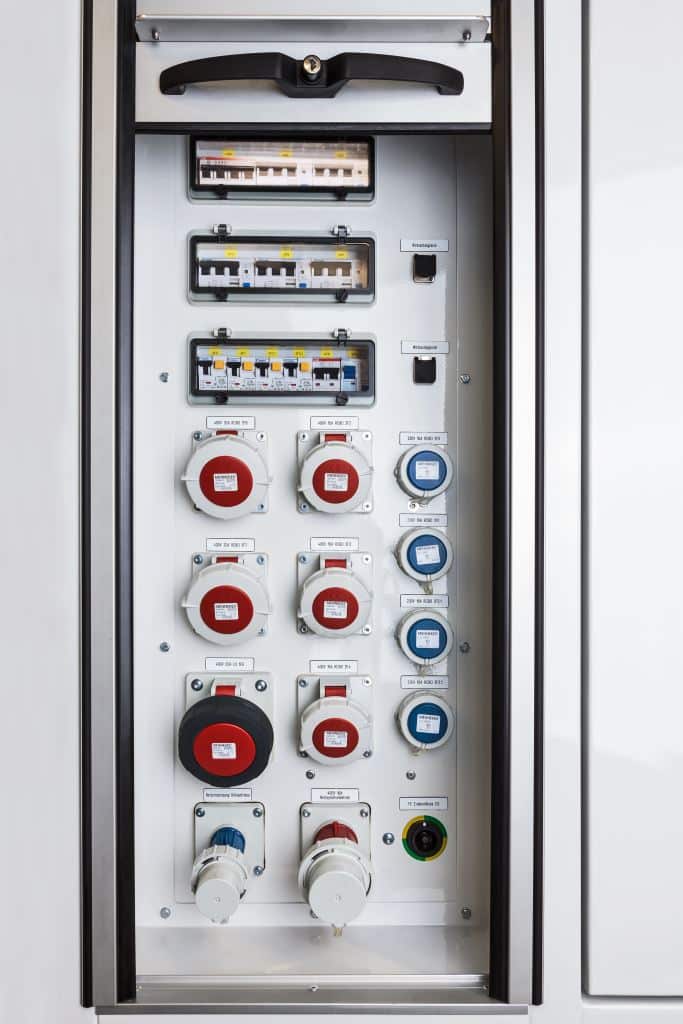

        Socket outgoing panel behind roller blinds separately Assembled: (branded products Doepke / Mennekes) 2 Schuko, 230V (fused with FI / LS)
        1 x 16A CEE, 400V (fused with all-current-sensitive combined FI / LS),
        1 x 32A CEE, 400V (fused with all-current-sensitive combined FI / LS),
        1 x 63A CEE, 400V (disconnected with all-current-sensitive combined FI / LS),
        1 x 125A CEE, 400V (fused with all-current-sensitive combined FI / LS)

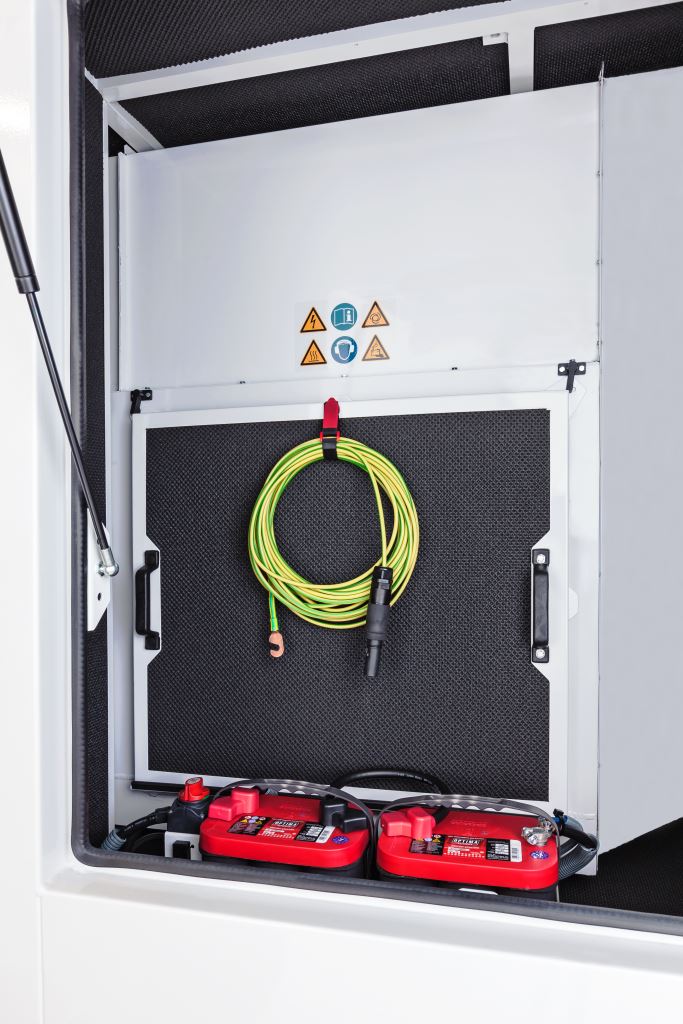

        Earth connection via 2 x Dinse cans
        (Incl. Earthing rod and 15m ground cable pre-assembled and loaded in the vehicle)
        Painting: candywhite (carrier vehicle and body)
        LED ambient lighting (left / right / rear) switchable by the control cabinet

        more pictures available on request

        Special variant available

        Price on request

        Available Options:

        Polyma remote monitoring 3.0

        Now they have anytime, anywhere, all data of your generator sets to hand.

        • Transmission of all aggregate data in real time
        • Available via PC, tablets, smartphone
        • Active notification of malfunctions and maintenance
        • GPS-supported positioning of the units
        • Notification at reach at maintenance intervals
        • Transmission via UMTS / password protected access
        • Ready for operation
