- › KUWI 5.1-5.9GHz Wireless Technology
- › DFS Comply
- › 3GSDI & HDMI, with 3GSDI loop out
- › 2000ft/600m (Line-of-Sight) distance
- › Strong Wall-Cross Performance
- › 2-ch SDI/HDMI audio transmission
- › OLED info and channel switching
- › Support 3-4 pairs working in one location
- › Multicast – 1 transmitter to Max 4 receivers
- › Wireless protocol & content double encryption
- › Reclock and accurate color reproduction

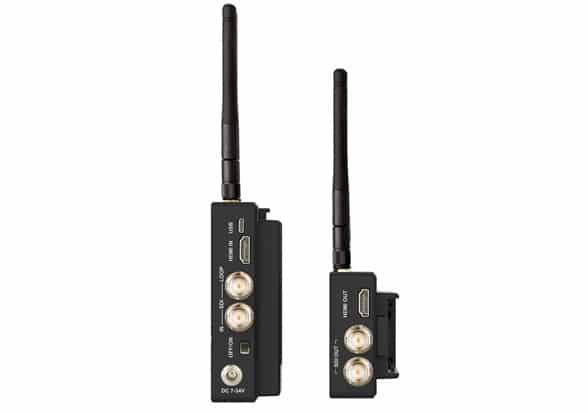

Input / Output
| Transmitter | 3G/HD-SDI input×1, loop output ×1 |
| HDMI 1.3 input×1 | |
| Receiver | 3G/HD-SDI output×2 |
| HDMI 1.3 output ×1 |
Video Formats
| SDI | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 | |
| HDMI | 1080p60, 1080p59.94, 1080p50 |
| 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30; | |
| 1080psf23.98, 1080psf24 | |
| 1080i60, 1080i59.94, 1080i50; | |
| 720p60, 720p59.94, 720p50 |
Wireless
| Frequency | 5.17GHz-5.69GHz and 5.75GHz-5.83GHz |
| RF Modules | OFDM 16QAM, 64QAM, QPSK, BPSK |
| RF Power | 125mW |
| Transmission Distance | 2000 feet / 600 meters (Line of sight) |
General
| Input voltage
|
Transmitter DC 7-34V
Receiver DC 7-34V |
| Power Consumption
|
Transmitter 8W Receiver 8W |
| Dimension(w/o antenna)
|
Transmitter 66×106.5×24.7 (mm) Receiver 106.5×66×24.7 (mm) |
| Net weight
|
Transmitter 236g Receiver 245g |
| Working Temperature | 0°C -+40°C |
FLOW2000 standard package includes:
1x Transmitter
1x Receiver
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to pole-tap DC cable
1x AC-DC power adaptor
1x Carrying case (for everything)

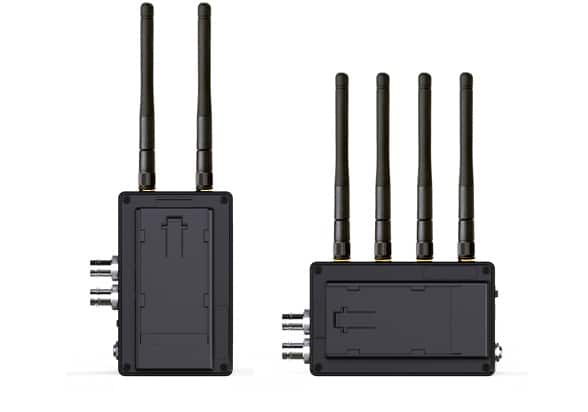

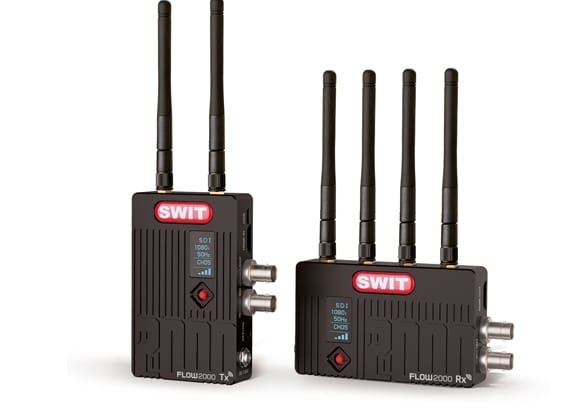

FLOW2000 1x Transmitter 1x Receiver

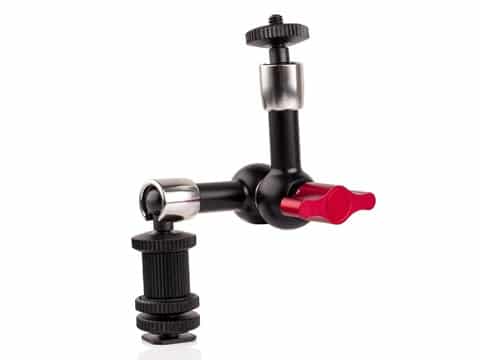

Cold shoe and 1/4″ Arm Trestle

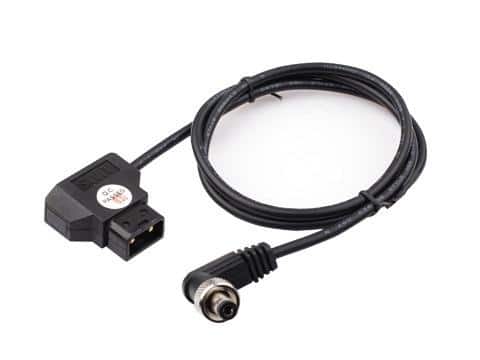

D-tap to lockable Pole-tap cable

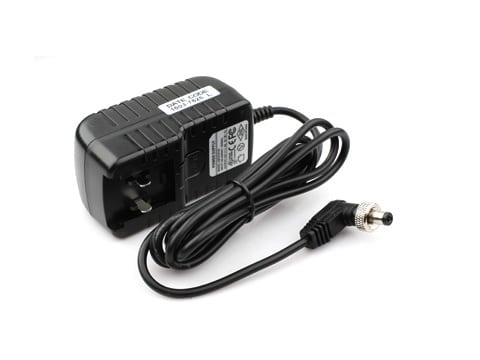

AC-DC adaptor

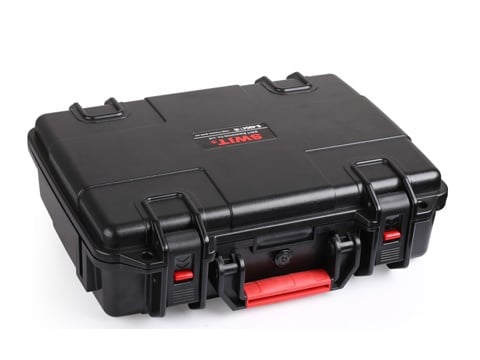

Carrying case
